Since its inception, the Clipper® Wire Hook System has earned a reputation for continued innovation and proven performance. Clipper wire hooks have been designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths and styles, such as Unibar® and carded. All are readily available to meet your individual application needs.

The double-staggered grip pattern gives wire hooks exceptional holding power without degrading the integrity of the belt carcass. Todays splices also have a very low profile, making them increasingly more compatible with conveyor components and compliant with the need for reduced operating noise.

Each Box Contains:
12" strips - 12 strips per box (with Pins) Each card holds 84 hooks - that is 144 lacing inches per box
Applications:
Package and Parts Handling, General Manufacturing, Commercial Laundry, Food Processing, Agriculture, Filter Media
Features:

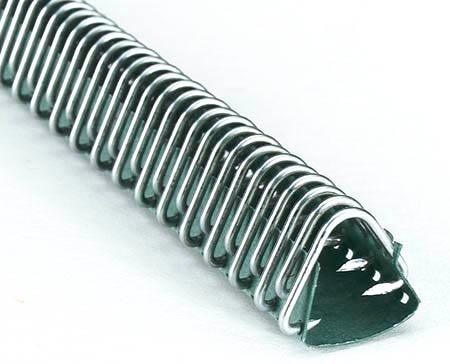

Individual Clipper hooks are secured on carding paper. Works with any application, including bias splices and troughed belt applications.

Part Number	Hook Size	Belt Thickness	Wire Diameter
2SP / 2SPGNY	2SP	.125" to .156" (1/8" to 5/32")	.054"
2 / 2GNY	2	.156" to 187" (5/32" to 3/16")	.054"
3-1 / 3-1GNY	3-1	.125" to .156" (1/8" to 5/32")	.054"
3 / 3GNY	3	.187" to .219" (3/16" to 7/32")	.054"
3-4 1/2 / 3-4-1/2GNY	3-4-1/2	.219" to .25" (7/32" to 1/4")	.054"
4 / 4GNY	4	.219" to .25" (7/32" to 1/4")	.054"
4-2 / 4-2GNY	4-2	.156" to 187" (5/32" to 3/16")	.054"
4 1/2 / 4-1/2GW	4-1/2	.25" to .281" (1/4" to 9/32")	.054"
5-3 / 5-3GW	5-3	.281" to .313" (9/32" to 5/16")	.054"
5 / 5GW	5	.281" to .313" (9/32" to 5/16")	.054"
6 / 6GW	6	.313" to .343" (5/16" to 11/32")	.054"
7 / 7GW	7	.343" to .39" (11/32" to 25/64")	.054"
