3-08508 by Couplamatic | 3 Series Coupling | 1/2" Hose ID x 3/4-16 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
3 Series — Thermoplastic

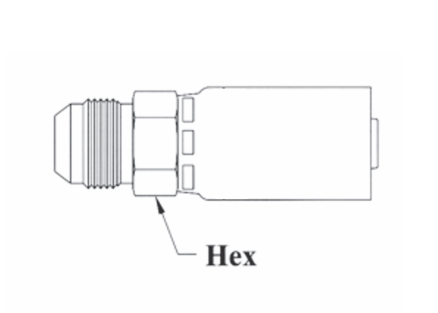

3 3 Series Thermoplastic — JIC 37°, Male Solid, Straight
3 is the JIC 37°, Male Solid, Straight configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.
1
What are the main product features?
- Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
- Thermoplastic Couplings may be swaged or crimped
- Not for use on reduced OD 100R7
- Trivalent Zinc Plating
2
Which sizes are available?
| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Die 4540- |
Pusher 4599- |
Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|---|
| Parker 55 | SYNFLEX 3903 | |||||||
| 3-03504 | 3/16" | 7/16-20 | 1/4" | 9/16" | 303 | MP001 | 10355-4-3 | 3903-03504 |
| 3-04504 | 1/4" | 7/16-20 | 1/4" | 5/8" | 304 | MP002 | 10355-4-4 | 3903-04504 |
| 3-04505 | 1/4" | 1/2-20 | 5/16" | 5/8" | 304 | MP002 | 10355-5-4 | 3903-04505 |
| 3-04506 | 1/4" | 9/16-18 | 3/8" | 3/4" | 304 | MP005 | — | 3903-04506 |
| 3-05506 | 5/16" | 9/16-18 | 3/8" | 11/16" | 305 | MP004 | 10355-6-5 | 3903-05506 |
| 3-06506 | 3/8" | 9/16-18 | 3/8" | 3/4" | 306 | MP005 | 10355-6-6 | 3903-06506 |
| 3-06508 | 3/8" | 3/4-16 | 1/2" | 13/16" | 306 | MP007 | 10355-8-6 | 3903-06508 |
| 3-08508 | 1/2" | 3/4-16 | 1/2" | 7/8" | 308 | MP008 | 10355-8-8 | 3903-08508 |
| 3-08510 | 1/2" | 7/8-14 | 5/8" | 15/16" | 308 | MP009 | 10355-10-8 | 3903-08510 |
| 3-12512 | 3/4" | 1-1/16x12 | 3/4" | 1-1/8" | 312 | MP011 | 10355-12-12 | 3903-12512 |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
