3-06C76 by Couplamatic | 3 Series Coupling | 3/8" Hose ID x 5/8-18 Thread Size Inverted Flare Male | 90° Elbow | Trivalent Zinc Plating

3-06C76 by Couplamatic | 3 Series Coupling | 3/8" Hose ID x 5/8-18 Thread Size Inverted Flare Male | 90° Elbow | Trivalent Zinc Plating

Sale price$13.92
Buy more, save moreDiscounts applied in cart/checkout.
3 Series — Thermoplastic

3 3 Series Thermoplastic — 90° Elbow

3 is the 90° Elbow configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.

1

What are the main product features?
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped
  • Not for use on reduced OD 100R7
  • Trivalent Zinc Plating
2

Which sizes are available?

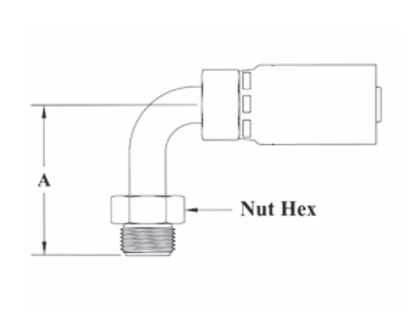

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Die
4540-		 Pusher
4599-		 Cross Reference Part Numbers
SYNFLEX 3903
3-06C76 3/8" 5/8-18 3/8" 1.66" 5/8" 306 TP206 3903-06C76

Additional Product Data:

Series:
  • 3 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male Inverted Flare
  • 3/8in Hose Barb
