3-06106 by Couplamatic | 3 Series Coupling | 3/8" Hose ID x 3/8-18 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 20
Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - NPTF - Male Solid
Package Quantity: 20 EA
| Quantity | Price Each |
| 15–29 | $83.76 |
| 30–59 | $79.35 |
| 60+ | $70.54 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
|

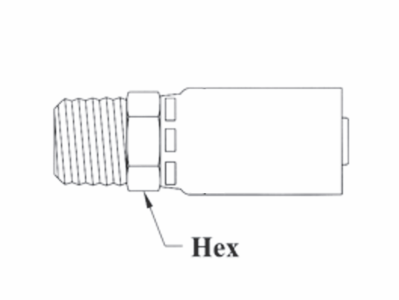

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Die 4540- |
Pusher 4599- |
Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|---|
| Parker 55 | SYNFLEX 3903 | |||||||
| 3-02102 | 1/8" | 1/8" | 1/8-27 | 1/2" | 302 | MP023 | 10155-2-2 | 3903-02102 |
| 3-02104 | 1/8" | 1/4" | 1/4-18 | 5/8" | 302 | MP026 | - | - |
| 3-03102 | 3/16" | 1/8" | 1/8-27 | 9/16" | 303 | MP001 | 10155-2-3 | 3903-03102 |
| 3-03104 | 3/16" | 1/4" | 1/4-18 | 11/16" | 303 | MP004 | 10155-4-3 | 3903-03104 |
| 3-04102 | 1/4" | 1/8" | 1/8-27 | 5/8" | 304 | MP002 | 10155-2-4 | 3903-04102 |
| 3-04104 | 1/4" | 1/4" | 1/4-18 | 11/16" | 304 | MP004 | 10155-4-4 | 3903-04104 |
| 3-04106 | 1/4" | 3/8" | 3/8-18 | 3/4" | 304 | MP005 | 10155-6-4 | 3903-04106 |
| 3-05104 | 5/16" | 1/4" | 1/4-18 | 11/16" | 305 | MP004 | 10155-4-5 | 3903-05104 |
| 3-05106 | 5/16" | 3/8" | 3/8-18 | 3/4" | 305 | MP005 | 10155-6-5 | 3903-05106 |
| 3-06104 | 3/8" | 1/4" | 1/4-18 | 3/4" | 306 | MP005 | 10155-4-6 | 3903-06104 |
| 3-06106 | 3/8" | 3/8" | 3/8-18 | 3/4" | 306 | MP005 | 10155-6-6 | 3903-06106 |
| 3-06108 | 3/8" | 1/2" | 1/2-14 | 15/16" | 306 | MP009 | 10155-8-6 | 3903-06108 |
| 3-08106 | 1/2" | 3/8" | 3/8-18 | 7/8" | 308 | MP008 | 10155-6-8 | 3903-08106 |
| 3-08108 | 1/2" | 1/2" | 1/2-14 | 15/16" | 308 | MP009 | 10155-8-8 | 3903-08108 |
| 3-12112 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | 312 | MP011 | 10155-12-12 | 3903-12112 |
| 3-16116 | 1" | 1" | 1-11-1/2 | 1-3/8" | 316 | MP013 | 10155-16-16 | 3903-16116 |
| Sewer Hose Couplings | ||||||||
| 3H-12112 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | - | MP011 | - | 390H-12112 |
| 3H-16116 | 1" | 1" | 1-11-1/2 | 1-3/8" | - | MP013 | 10158-16-16 | 390H-16116 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
