3-04644 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 7/16-20 Thread Size JIC/SAE Dual Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating
Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - JIC/SAE Dual Seat - 90° Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.22 |
| 40–79 | $12.86 |
| 80+ | $11.35 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
|

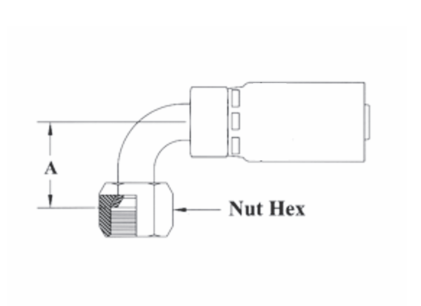

| Part Number | Hose ID | Thread Size | Tube OD | A-DropInches | Nut Hex | Die 4540- |
Pusher 4599- |
Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|---|---|
| Parker 55 | SYNFLEX 3903 | ||||||||
| 3-03644 | 3/16" | 7/16-20 | 1/4" | 0.81" | 9/16" | 303 | TP204 | 1L955-4-3 | 3903-03644 |
| 3-04644 | 1/4" | 7/16-20 | 1/4" | 0.81" | 9/16" | 304 | TP204 | 1L955-4-4 | 3903-04644 |
| 3-04645 | 1/4" | 1/2-20 | 5/16" | 0.83" | 5/8" | 304 | TP205 | 1L955-5-4 | 3903-04645 |
| 3-04646* | 1/4" | 9/16-18 | 3/8" | 0.91" | 11/16" | 304 | TP206 | - | - |
| 3-05646* | 5/16" | 9/16-18 | 3/8" | 0.91" | 11/16" | 305 | TP206 | - | 3903-05646 |
| 3-06646* | 3/8" | 9/16-18 | 3/8" | 0.91" | 11/16" | 306 | TP206 | 1L955-6-6 | 3903-06646 |
| 3-06648 | 3/8" | 3/4-16 | 1/2" | 1.15" | 7/8" | 306 | TP208 | 1L955-8-6 | 3903-06648 |
| 3-08648 | 1/2" | 3/4-16 | 1/2" | 1.15" | 7/8" | 308 | TP308 | 1L955-8-8 | 3903-08648 |
| 3-08650 | 1/2" | 7/8-14 | 5/8" | 1.23 | 1" | 308 | TP310 | 1L955-10-8 | 3903-08650 |
*JIC Seat and thread only
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
