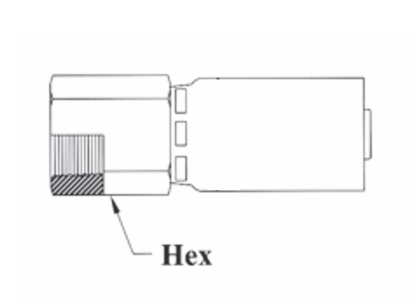

3-04204 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 1/4-18 Thread Size Female Solid NPTF | Straight | Trivalent Zinc Plating

3-04204 by Couplamatic | 3 Series Coupling | 1/4" Hose ID x 1/4-18 Thread Size Female Solid NPTF | Straight | Trivalent Zinc Plating

Minimum Order Quantity: 5 Units

Sale price$7.70
Buy more, save moreDiscounts applied in cart/checkout.
3 Series — Thermoplastic

3 3 Series Thermoplastic — NPTF Female Solid, Straight

3 is the NPTF Female Solid, Straight configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.

1

What are the main product features?
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped
  • Not for use on reduced OD 100R7
  • Trivalent Zinc Plating
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size Die
4540-		 Pusher
4599-
3-04204 1/4" 1/4" 1/4-18 3/4" 304 FP002

Additional Product Data:

Series:
  • 3 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
