3-03244 by Couplamatic | 3 Series Coupling | 3/16" Hose ID x 1/4-18 Thread Size Female Swivel NPSM | Straight | Trivalent Zinc Plating
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
3 Series — Thermoplastic
3 3 Series Thermoplastic — NPSM Female Swivel, Straight
3 is the NPSM Female Swivel, Straight configuration of the 3 Series Thermoplastic system, terminating SAE 100R7, 100R8 and 100R18 thermoplastic hose.
1
What are the main product features?
- Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
- Thermoplastic Couplings may be swaged or crimped
- Not for use on reduced OD 100R7
- Trivalent Zinc Plating
2
Which sizes are available?

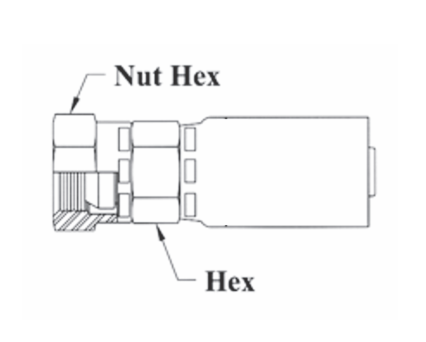

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Nut Hex | Die 4540- |
Pusher 4599- |
Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|---|---|
| Parker 55 | SYNFLEX 3903 | ||||||||
| 3-03244 | 3/16" | 1/4" | 1/4-18 | 5/8" | 3/4" | 303 | FP002 | — | 3903-03244 |
| 3-04244 | 1/4" | 1/4" | 1/4-18 | 5/8" | 3/4" | 304 | FP002 | 10755-4-4 | 3903-04244 |
| 3-06246 | 3/8" | 3/8" | 3/8-18 | 3/4" | 7/8" | 306 | FP004 | 10755-6-6 | 3903-06246 |
| 3-08248 | 1/2" | 1/2" | 1/2-14 | 1" | 1" | 308 | FP018 | 10755-8-8 | 3903-08248 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
