3-03144 by Couplamatic | 3 Series Coupling | 3/16" Hose ID x 1/4-18 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating

3-03144 by Couplamatic | 3 Series Coupling | 3/16" Hose ID x 1/4-18 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating

Sale price$9.94

Couplamatic Systems Inc.
3 Series Thermoplastic Hose Couplings - NPTF - Male Swivel
Buy More, Save More!
Quantity Price Each
10–39 $9.34
40–79 $8.45
80+ $7.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male NPTF
  • 3/16in Hose Barb
Description:
  • Swivel for installation purposes only. Leakage may occur at low pressure.
  • Coupling may be used in Couplamatic Systems Inc., Synflex, and Parker Hannifin Swage machines.
  • Thermoplastic Couplings may be swaged or crimped.
  • Not for use on reduced OD 100R7.
  • Trivalent Zinc Plating
    		•

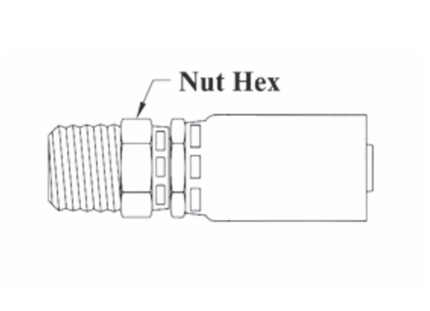

    Part Number Hose ID Pipe Size Thread Size Nut Hex Die
    4540-    		 Pusher
    4599-    		 Cross Reference Part Numbers
    Parker 55 SYNFLEX 3903
    3-03144 3/16" 1/4" 1/4-18 11/16" 303 MP003 11355-4-3 3903-03144
    3-04144 1/4" 1/4" 1/4-18 11/16" 304 MP003 11355-4-4 3903-04144
    3-06146 3/8" 3/8" 3/8-18 3/4" 306 MP006 11355-6-6 3903-06146
    3-08148 1/2" 1/2" 1/2-14 15/16" 308 MP010 11355-8-8 3903-08148

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
