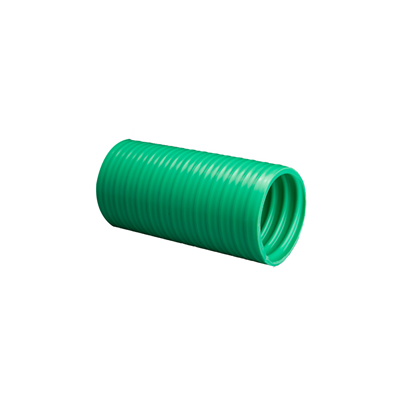

3.0-SLEEVE-TDG by Texcel | SIGMA-BANDING SLEEVES™ Series | Green Banding Sleeve For: SIGMA-TDG | 3" Hose ID | 3ft Length
SIGMA™ by Texcel
BANDING SLEEVES™ Series | GREEN BANDING SLEEVE FOR: SIGMA-TDG
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $40.51 |
| 40–79 | $36.64 |
| 80+ | $32.33 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | High quality vapor recovery hose for heavy-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures. | Construction: | Clear, specially compounded polyurethane with a bright red, rigid PVC, right-handed helix |
| Grounding: | Embedded tin coated copper wire | Safety Factor: | 4:1 |
| Temperature: | -40°F to +150°F (service temperature depends on actual application) | Branding: | TEXCEL® SIGMA™-VRH - HEAVY DUTY VAPOR RECOVERY HOSE -LOT |
| Compared To: | Tigervapor HD | Sleeves: | SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-Coil™ (banding coils) are recommended to accurately follow assembly procedures |
| Part Number | Hose ID | Std. Length | Sleeve Color | Lbs./ft |
|---|---|---|---|---|
| 3.0-SLEEVE-TDG | 3" | 3' | Green | 3.20 lbs |
| 4.0-SLEEVE-TDG | 4" | 3' | Green | 3.75 lbs |
| 2.0-SLEEVE-TDHD | 2" | 3' | Orange | 1.10 lbs |
| 3.0-SLEEVE-TDHD | 3" | 3' | Orange | 3.20 lbs |
| 4.0-SLEEVE-TDHD | 4" | 3' | Orange | 3.75 lbs |
| 2.0-SLEEVE-TD150 | 2" | 3' | Red | 1.10 lbs |
| 3.0-SLEEVE-TD150 | 3" | 3' | Red | 3.20 lbs |
| 4.0-SLEEVE-TD150 | 4" | 3' | Red | 3.75 lbs |
| 2.0-SLEEVE-VAPOR | 2" | 3' | Yellow | 1.10 lbs |
| 3.0-SLEEVE-VAPOR | 3" | 3' | Yellow | 3.20 lbs |
| 4.0-SLEEVE-VAPOR | 4" | 3' | Yellow | 3.75 lbs |
