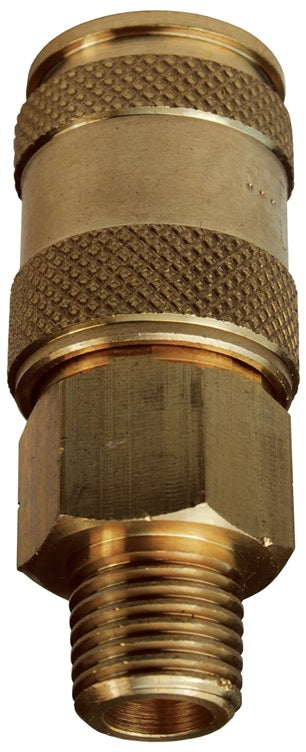

2UM3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | 3/8" Male NPT x 1/4" Automatic Universal | Socket | Nitrile Seal | Brass
2UM3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | 3/8" Male NPT x 1/4" Automatic Universal | Socket | Nitrile Seal | Brass

2UM3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | 3/8" Male NPT x 1/4" Automatic Universal | Socket | Nitrile Seal | Brass

Sale price$19.72

Dixon Valve & Coupling
Pneumatic Coupling: U-Series Automatic Universal Coupler (Male Threads)
Buy More, Save More!
Quantity Price Each
10–39 $18.54
40–79 $16.76
80+ $14.79
Discounts applied in cart/checkout.

Product Data:

Series:
  • U Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female Semi-Universal QD Interchange
  • 3/8in Male NPTF
Compatibility & Interchange:
  • 2U-Series: 2U-Series 6-in-1 (ARO 210, Industrial, Truflate, Lincoln, Italian, and CEJN 320)
  • 3U-Series: 3U-Series 4-in-1 (ARO 310, Industrial, Truflate and CEJN410)
  • Parker UC-Series, Hansen Auto-Flo 23 and Coilhose Series UC
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Valve components are machined from solid brass bar stock.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Note: Many competitive Universal couplings are unable to match the performance capabilities of the Dixon U-Series. Although the universal coupler permits multiple series nipples to mate with one coupler, it is recommended to match like series couplers and nipples. When using a universal coupler, the lower performance rating between the coupler and the nipple must take precedence.
  • Dry Air: Some pneumatic applications require the pressurized air to be 'dried' to ensure proper operation of equipment and/or application of product (ie. Auto body shops). It is best to match like series couplers and nipples in these applications. If it is necessary to use a Universal coupler, lube the seal and valve area regularly to ensure reliable service.
Additional Information:
U-Series | Automatic Universal Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst Pressure
When Connected To:
2UM2-B Socket/Female 1/4" 1/4" - 18"
Male NPT		 Brass 2.44"
(62.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)
  • Steel DF Plug: 2,800 PSI (193 bar)
  • Steel CJ Plug: 9,500 PSI (655 bar)
  • Steel J Plug: 6,400 PSI (441 bar)
  • Steel M Plug: 4,300 PSI (297 bar)
2UBM2-B Socket/Female 1/4" 1/4" - 19"
Male BSPP		 Brass 2.44"
(62.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)
  • Steel DF Plug: 2,800 PSI (193 bar)
  • Steel CJ Plug: 9,500 PSI (655 bar)
  • Steel J Plug: 6,400 PSI (441 bar)
  • Steel M Plug: 4,300 PSI (297 bar)
2UM3-B Socket/Female 1/4" 3/8" - 18"
Male NPT		 Brass 2.44"
(62.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)
  • Steel DF Plug: 2,000 PSI (138 bar)
  • Steel CJ Plug: 8,000 PSI (552 bar)
  • Steel J Plug: 4,000 PSI (276 bar)
  • Steel M Plug: 2,000 PSI (138 bar)
2UBM3-B Socket/Female 1/4" 3/8"-19"
Male BSPP		 Brass 2.44"
(62.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)
  • Steel DF Plug: 2,000 PSI (138 bar)
  • Steel CJ Plug: 8,000 PSI (552 bar)
  • Steel J Plug: 4,000 PSI (276 bar)
  • Steel M Plug: 2,000 PSI (138 bar)
3UM3-B Socket/Female 3/8" 3/8" - 18"
Male NPT		 Brass 2.64"
(67.0mm)		 1.09"
(27.7mm)		 15/16" 300 PSI
(20 bar)
  • Steel DF Plug: 2,000 PSI (138 bar)
  • Steel CJ Plug: 8,000 PSI (552 bar)
  • Steel J Plug: 4,000 PSI (276 bar)
  • Steel M Plug: 2,000 PSI (138 bar)
3UBM3-B Socket/Female 3/8" 3/8" - 19"
Male BSPP		 Brass 2.64"
(67.0mm)		 1.09"
(27.7mm)		 15/16" 300 PSI
(20 bar)
  • Steel DF Plug: 2,000 PSI (138 bar)
  • Steel CJ Plug: 8,000 PSI (552 bar)
  • Steel J Plug: 4,000 PSI (276 bar)
  • Steel M Plug: 2,000 PSI (138 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
