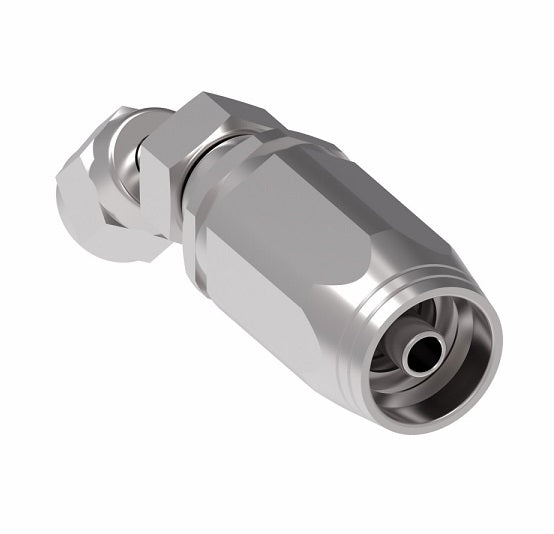

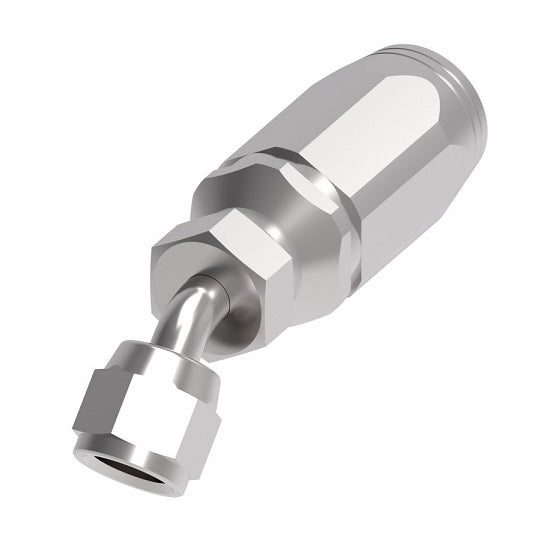

2RA4FJA4 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel - 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $52.70 |
| 40–79 | $47.65 |
| 80+ | $42.05 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
Component Part Numbers |
|||||||||
| Complete Fitting Part Number |
Nipple Assembly Part Number |
Reusable Socket Part Number |
Thread Size | Hose Size | A | D | EØ | H | |
| 2RA4FJA4 | 185287-4S | 2RA4 | 7/16-20 | -04 | 2.51" | 1.34" | 0.17" | 0.33" | |
| 2RA6FJA6 | 185287-6S | 2RA6 | 9/16-18 | -06 | 2.82" | 1.48" | 0.31" | 0.39" | |
| 2RA8FJA8 | 185287-8S | 2RA8 | 3/4-16 | -08 | 3.26" | 1.75" | 0.39" | 0.55" | |
| 2RA12FJA12 | 185287-12S | 2RA12 | 1-1/16-12 | -12 | 4.15" | 2.28" | 0.61" | 0.78" | |
| 2RA16FJA16 | - | 2RA16 | 1-5/16-12 | -16 | 5.03" | 2.98" | 0.82" | 1.07" | |
