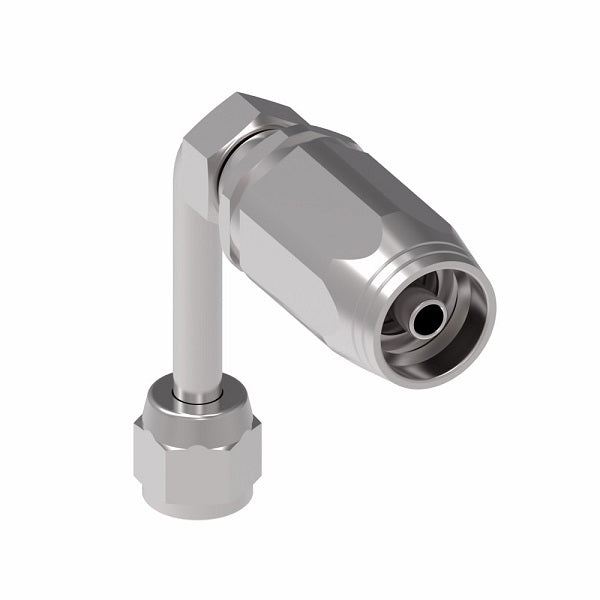

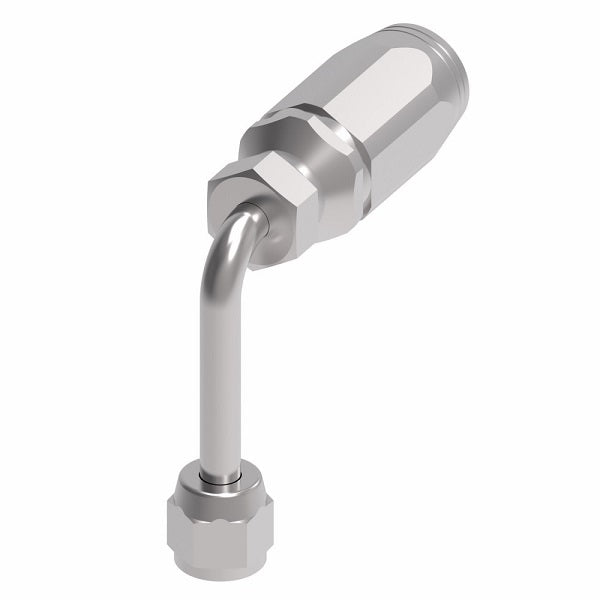

2RA12FJC12 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel Long Drop - 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $105.09 |
| 20–59 | $95.03 |
| 60+ | $83.85 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
Component Part Numbers |
|||||||||
| Complete Fitting Part Number |
Nipple Assembly Part Number |
Reusable Socket Part Number |
Thread Size | Hose Size | A | D | EØ | H | |
| 2RA4FJC4 | 185263-4S | 2RA4 | 7/16-20 | -04 | 2.40" | 1.23" | 0.17" | 1.80" | |
| 2RA6FJC6 | 185263-6S | 2RA6 | 9/16-18 | -06 | 2.72" | 1.38" | 0.31" | 2.18" | |
| 2RA8FJC8 | 185263-8S | 2RA8 | 3/4-16 | -08 | 3.02" | 1.52" | 0.39" | 2.43" | |
| 2RA12FJC12 | 185263-12S | 2RA12 | 1-1/16-12 | -12 | 4.11" | 2.24" | 0.61" | 3.73" | |
