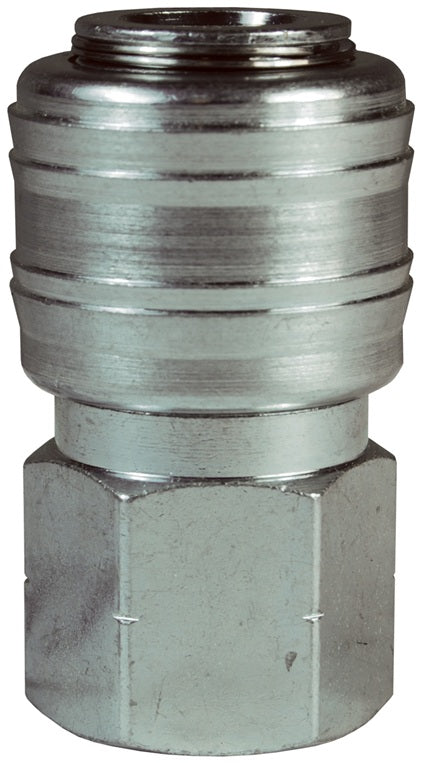

2MF2-PL by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/4" Female NPT x 1/4" Automatic ARO Interchange | Socket | Nitrile Seal | Steel/Brass
2MF2-PL by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/4" Female NPT x 1/4" Automatic ARO Interchange | Socket | Nitrile Seal | Steel/Brass

2MF2-PL by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/4" Female NPT x 1/4" Automatic ARO Interchange | Socket | Nitrile Seal | Steel/Brass

Sale price$14.13

Dixon Valve & Coupling
Pneumatic Coupling: M-Series Automatic ARO Interchange Coupler (Female Threads)
Buy More, Save More!
Quantity Price Each
10–39 $13.28
40–79 $12.01
80+ $10.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • M Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female ARO 210 QD Interchange
  • 1/4in Female NPTF
Compatibility & Interchange:
  • ARO 210
  • Hansen 210/310

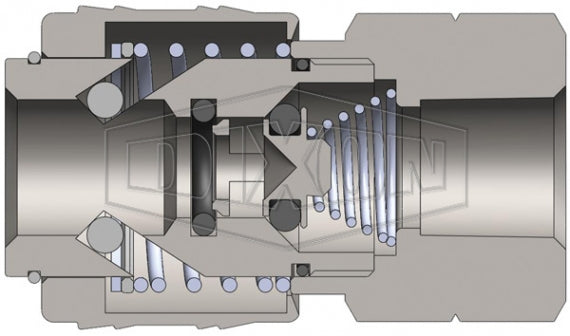

Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C)
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
M-Series | Automatic ARO Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2MF2-PL Socket/Female 1/4" 1/4" - 18 Female NPT Steel/Brass 1.72"
(43.6mm)		 1.06"
(27.0mm)		 13/16" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 2,600 PSI
(179 bar)		 5,000 PSI
(345 bar)
2MF3-PL Socket/Female 1/4" 3/8" - 18 Female NPT Steel/Brass 1.72"
(43.6mm)		 1.06"
(27.0mm)		 13/16" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 2,600 PSI
(179 bar)		 5,000 PSI
(345 bar)
3MF3-PL Socket/Female 3/8" 3/8" - 18 Female NPT Steel/Brass 1.93"
(49.0mm)		 1.26"
(32.0mm)		 1-1/16" Steel Coupler & Steel Plug: 300 PSI
(20 bar)		 Steel Coupler & Steel Plug: 3,300 PSI
(228 bar)
M-Series | ARO Interchange Plug (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
M2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.57"
(39.9mm)		 0.79"
(20.1mm)		 11/16"
  • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
  • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
    M2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.57"
    (39.9mm)    		 0.79"
    (20.1mm)    		 11/16"
    • Auto Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 5,000 PSI (345 bar)
    • Manual Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,700 PSI (876 bar)
      M2F3 Plug/Male 1/4" 3/8" - 18 Female NPTF Steel 1.57"
      (39.9mm)      		 1.01"
      (25.7mm)      		 7/8"
      • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
      • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
        M3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.82"
        (46.2mm)        		 1.01"
        (25.7mm)        		 7/8"
        • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 3,300 PSI (228 bar)
