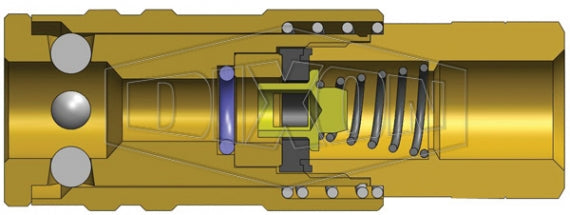

2LF2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | L-Series | 1/4" Female NPT x 1/4" Lincoln Interchange | Socket | Nitrile Seal | Brass
2LF2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | L-Series | 1/4" Female NPT x 1/4" Lincoln Interchange | Socket | Nitrile Seal | Brass

2LF2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | L-Series | 1/4" Female NPT x 1/4" Lincoln Interchange | Socket | Nitrile Seal | Brass

Sale price$18.88

Dixon Valve & Coupling
Pneumatic Coupling: L-Series Lincoln Interchange Coupler (Female Threads)
Buy More, Save More!
Quantity Price Each
10–39 $17.75
40–79 $16.05
80+ $14.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • L Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female Lincoln QD Interchange
  • 1/4in Female NPTF
Compatibility & Interchange:
  • Lincoln Long-Nose Automotive Interchange
  • Parker 70-Series, Tomco Series-1110, Coilhose Type-17
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
L-Series | Lincoln Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
2LF2-B Socket/Female 1/4" 1/4" - 18" Female NPT Brass 2.40"
(61.0mm)		 0.90"
(22.9mm)		 3/4" 300 PSI
(21 bar)		 5000 PSI
(345 bar)
L-Series | Lincoln Interchange Plug (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Max. Operating
Pressure		 Burst Pressure
L2F2 Plug/Male 1/4" 1/4" - 18" Female NPT Steel 2.10"
(53.3mm)		 0.72"
(18.3mm)		 5/8" 300 PSI
(21 bar)		 5000 PSI
(345 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
