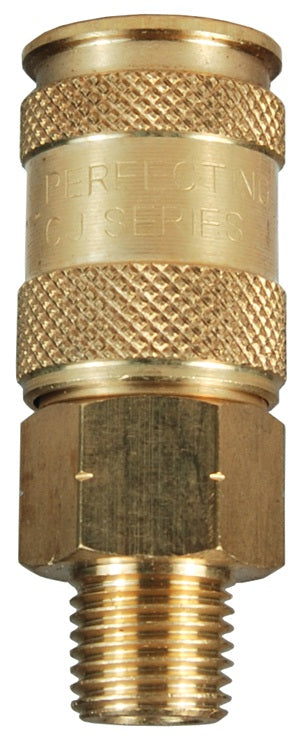

2CJBM3-B Dixon Valve Brass CJ-Series Quick Disconnect 1/4" European Interchange Pneumatic Coupler - 3/8"-19 Male BSPT
Dixon

2CJBM3-B Dixon Valve Brass CJ-Series Quick Disconnect 1/4" European Interchange Pneumatic Coupler - 3/8"-19 Male BSPT

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Compatibility & Interchange:
  • European High-Flow Interchange
  • Interchanges with CEJN 320, Coilhouse Megaflow, Rectus 25KA/26KA and other like designs
Construction:
  • Machined components are manufactured using solid brass bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
CJ-Series | European Interchange Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2CJM2-B Socket/Female 1/4" 1/4" - 18 Male NPT Brass 2.44"
(62.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 7,200 PSI
(500 bar)		 9,500 PSI
(655 bar)
2CJBM2-B Socket/Female 1/4" 1/4" - 19 Male BSPT Brass 2.44"
(62.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 7,200 PSI
(500 bar)		 9,500 PSI
(655 bar)
2CJM3-B Socket/Female 1/4" 3/8" - 18 Male NPT Brass 2.44"
(62.0mm)		 0.92"
(23.4mm)		 3/4" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 7,200 PSI
(500 bar)		 9,500 PSI
(655 bar)
3CJM3-B Socket/Female 3/8" 3/8" - 18 Male NPT Brass 2.64"
(67.0mm)		 1.09"
(27.7mm)		 15/16" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 4,400 PSI
(300 bar)		 8,000 PSI
(552 bar)
3CJBM3-B Socket/Female 3/8" 3/8" - 19 Male BSPT Brass 2.64"
(67.0mm)		 1.09"
(27.7mm)		 15/16" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 4,400 PSI
(300 bar)		 8,000 PSI
(552 bar)
3CJM4-B Socket/Female 3/8" 1/2" - 14 Male NPT Brass 2.76"
(70.0mm)		 1.09"
(27.7mm)		 15/16" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 4,400 PSI
(300 bar)		 8,000 PSI
(552 bar)
3CJBM4-B Socket/Female 3/8" 1/2" - 14 Male BSPT Brass 2.76"
(70.0mm)		 1.09"
(27.7mm)		 15/16" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 4,400 PSI
(300 bar)		 8,000 PSI
(552 bar)
CJ-Series | European Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
CJ2M2-LG Plug/Male 1/4" 1/4" - 18 Male NPT Steel 1.48"
(37.5mm)		 0.65"
(16.5mm)		 9/16"
  • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
    CJ2M2-B Plug/Male 1/4" 1/4" - 18 Male NPT Brass 1.48"
    (37.5mm)    		 0.65"
    (16.5mm)    		 9/16"
    • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
      CJ2BM2-LG Plug/Male 1/4" 1/4" - 19 Male BSPT Steel 1.48"
      (37.5mm)      		 0.65"
      (16.5mm)      		 9/16"
      • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
        CJ2BM2-B Plug/Male 1/4" 1/4" - 19 Male BSPT Brass 1.48"
        (37.5mm)        		 0.65"
        (16.5mm)        		 9/16"
        • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
          CJ2M3-LG Plug/Male 1/4" 3/8" - 18 Male NPT Steel 1.56"
          (39.5mm)          		 0.79"
          (20.1mm)          		 11/16"
          • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
            CJ2M3-B Plug/Male 1/4" 3/8" - 18 Male NPT Brass 1.56"
            (39.5mm)            		 0.79"
            (20.1mm)            		 11/16"
            • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
              CJ2BM3-LG Plug/Male 1/4" 3/8" - 19 Male BSPT Steel 1.56"
              (39.5mm)              		 0.79"
              (20.1mm)              		 11/16"
              • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 9,500 PSI (655 bar)
                CJ2BM3-B Plug/Male 1/4" 3/8" - 19 Male BSPT Brass 1.56"
                (39.5mm)                		 0.79"
                (20.1mm)                		 11/16"
                • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 7,200 PSI (500 bar)
                  CJ3M3 Plug/Male 3/8" 3/8" - 18 Male NPT Steel 1.57"
                  (40.0mm)                  		 0.79"
                  (20.1mm)                  		 11/16"
                  • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 8,000 PSI (552 bar)
                    CJ3M3-B Plug/Male 3/8" 3/8" - 18 Male NPT Brass 1.57"
                    (40.0mm)                    		 0.79"
                    (20.1mm)                    		 11/16"
                    • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 4,400 PSI (300 bar)
                      CJ3M4 Plug/Male 3/8" 1/2" - 14 Male NPT Steel 1.81"
                      (46.0mm)                      		 1.01"
                      (25.7mm)                      		 7/8"
                      • Brass Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 8,000 PSI (552 bar)
                        CJ3M4-B Plug/Male 3/8" 1/2" - 14 Male NPT Brass 1.81"
                        (46.0mm)                        		 1.01"
                        (25.7mm)                        		 7/8"
                        • Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 4,400 PSI (300 bar)
