Applications:
  • Caramel
  • Chocolate
  • High Temperature Applications
Features:

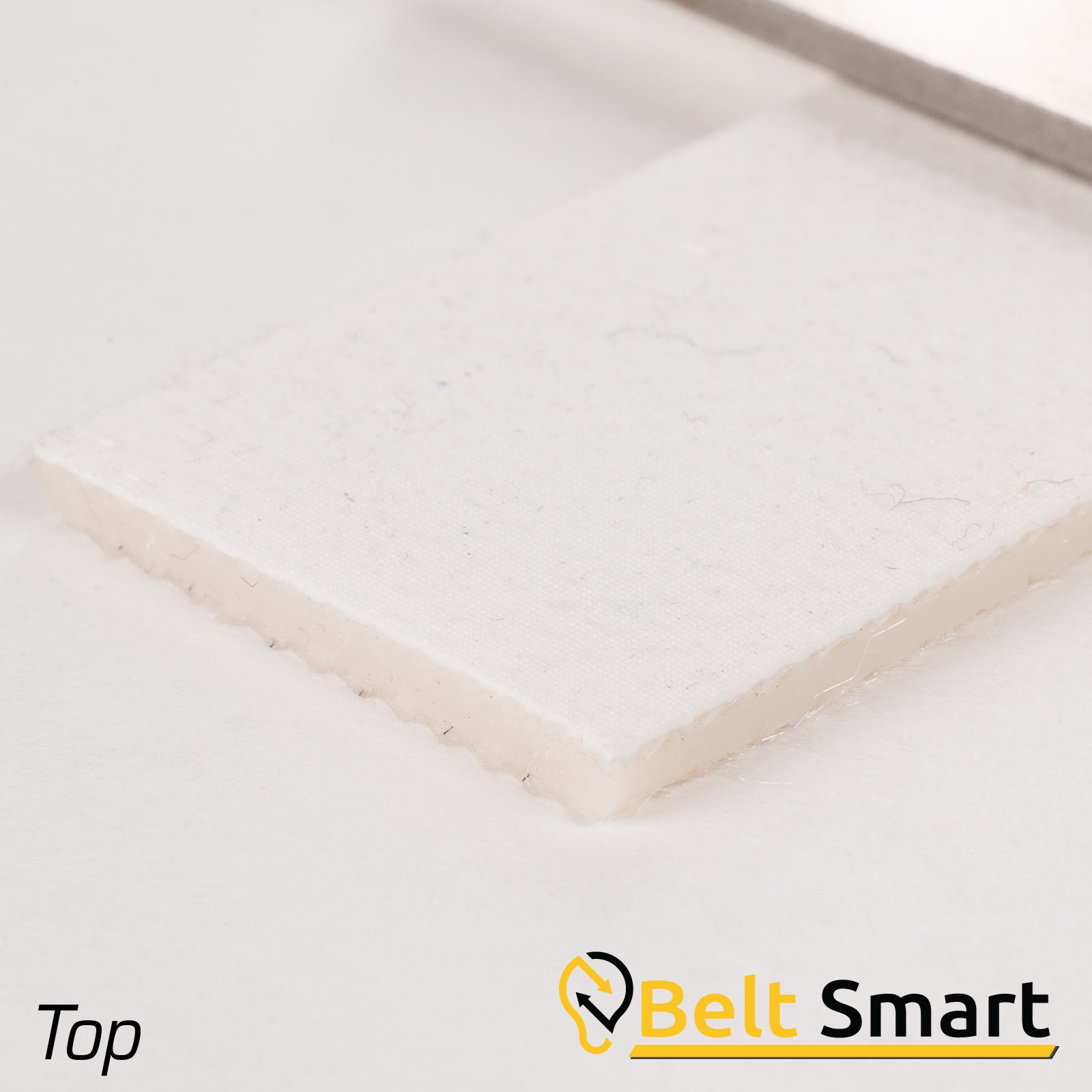

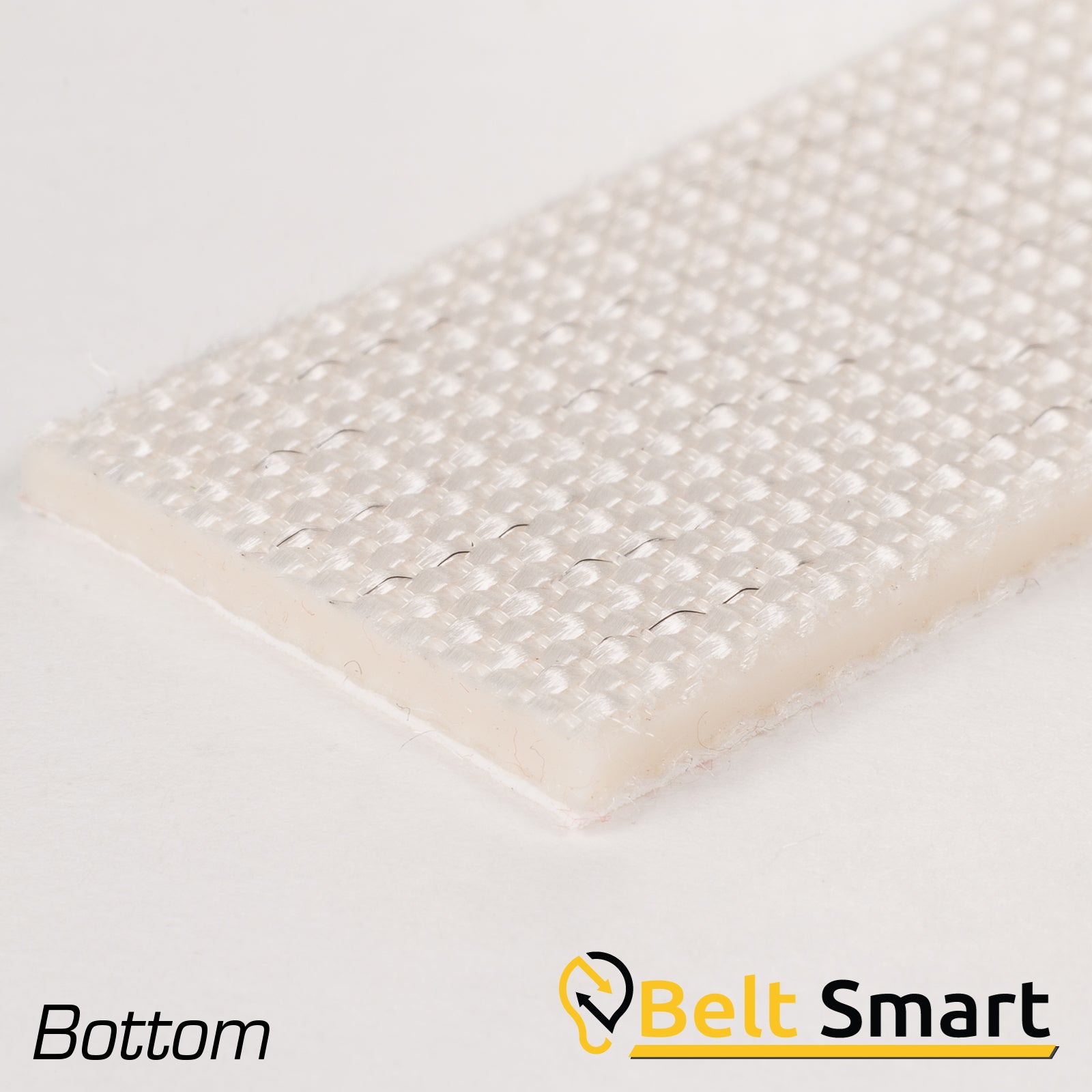

  • These 2 ply belts have a smooth silicone top cover.
  • No. 2B7 has an excellent release cover and in some applications can handle environments greater than 200 deg. F. Will release difficult products such as caramel and chocolate.
  • No. 2B8 is used to convey product in environments with elevated temperatures, also in situations as low as -40 deg. F. It is highly flexible and can be spliced in the traditional mechanical or endless methods.
Specifications:
  • Meets FDA standards.
2 Ply Poly CR67
Silicone x Bare FDA
Pt No.: 2B7		 E8/2 0/SI3
HT AS FDA
Pt No.: 2B8
Thickness .062" N/A
Covers SI x B N/A
Carcass Mono/Multi N/A
Elongation @ 1% 67 lbs. N/A
Approx. Weight
Lbs. Per Inch Width		 .034 lbs. N/A
Min. Pulley Diameter 1-1/2" N/A
Temperature Range -20 deg. F / 180 deg. F N/A
Coefficient of Friction .22 N/A
Anti-Static No Yes
Clipper Lace #36 N/A
AS = Anti-Static
HT = High Temp
SI = Silicone Cover
B = Bare Fabric
