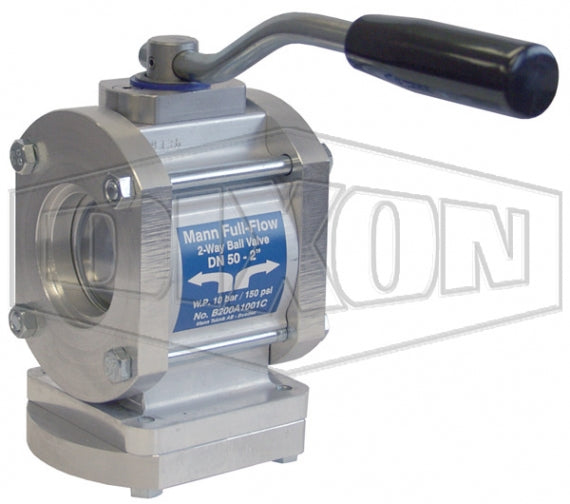

2WAYBV300 by Dixon Valve MannTek | Full Flow Ball Valve | Two-Way | 3" Female NPT x 3" Female NPT | Aluminum

Sale price$1,105.92

Dixon Valve & Coupling
MannTek Full Flow Ball Valve | Two-Way | Aluminum

Commonly used for switching compartments or tanks.


Buy More, Save More!
Quantity Price Each
4–7 $1,039.56
8–14 $995.33
15+ $884.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • MannTek
Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in Female NPT
  • Some Ends Match
Features:
  • High flow rate; low pressure drop.
  • Spindle can be disassembled even when ball valve is installed.
  • Three ports - one inlet and two outlets, valve directs the flow from the inlet to either of the two outlets.
Materials:
  • Wetted parts are aluminum and stainless steel.
  • FPM seals.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Standard valve ports - female NPT, socket weld for Schedule 40 pipe and grooved.
Part Number End Type Size Bore
2WAYBV200 Female NPT x Female NPT 2" -
2WAYBV200-SH* Female NPT x Female NPT 2" -
2WAYBV300 Female NPT x Female NPT 3" -
2WAYBV200SW Socket Weld End x Socket Weld End 2" 2.390"
2WAYBV300SW Socket Weld End x Socket Weld End 3" 3.530"
2WAYBV200VIC3 Grooved End x Grooved End 2" -
2WAYBV300VIC3 Grooved End x Grooved End 3" -

* Supplied with straight handle
