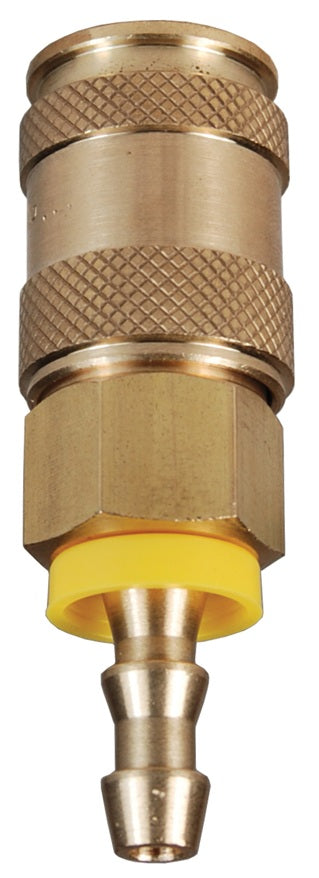

2UB2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automatic Universal | Socket | Nitrile Seal | Brass
2UB2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automatic Universal | Socket | Nitrile Seal | Brass

2UB2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | U-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" Automatic Universal | Socket | Nitrile Seal | Brass

Sale price$19.80

Dixon Valve & Coupling
Pneumatic Coupling: U-Series Automatic Universal Coupler (Push-Loc Hose Barb)
Buy More, Save More!
Quantity Price Each
10–39 $18.61
40–79 $16.83
80+ $14.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • U Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female Semi-Universal QD Interchange
  • 1/4in Push-on Hose Barb
Compatibility & Interchange:
  • 2U-Series: 2U-Series 6-in-1 (ARO 210, Industrial, Truflate, Lincoln, Italian, and CEJN 320)
  • 3U-Series: 3U-Series 4-in-1 (ARO 310, Industrial, Truflate and CEJN410)
  • Parker UC-Series, Hansen Auto-Flo 23 and Coilhose Series UC
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Valve components are machined from solid brass bar stock.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Note: Many competitive Universal couplings are unable to match the performance capabilities of the Dixon U-Series. Although the universal coupler permits multiple series nipples to mate with one coupler, it is recommended to match like series couplers and nipples. When using a universal coupler, the lower performance rating between the coupler and the nipple must take precedence.
  • Dry Air: Some pneumatic applications require the pressurized air to be 'dried' to ensure proper operation of equipment and/or application of product (ie. Auto body shops). It is best to match like series couplers and nipples in these applications. If it is necessary to use a Universal coupler, lube the seal and valve area regularly to ensure reliable service.
Additional Information:
U-Series | Automatic Universal Coupler (Push-Loc Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst Pressure
When Connected To:
2UB2-B Socket/Female 1/4" 1/4" Brass 2.52"
(64.0mm)		 0.92"
(23.4mm)		 3/4" - -
2UB3-B Socket/Female 1/4" 3/8" Brass 2.64"
(67.0mm)		 0.92"
(23.4mm)		 3/4" - -

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
