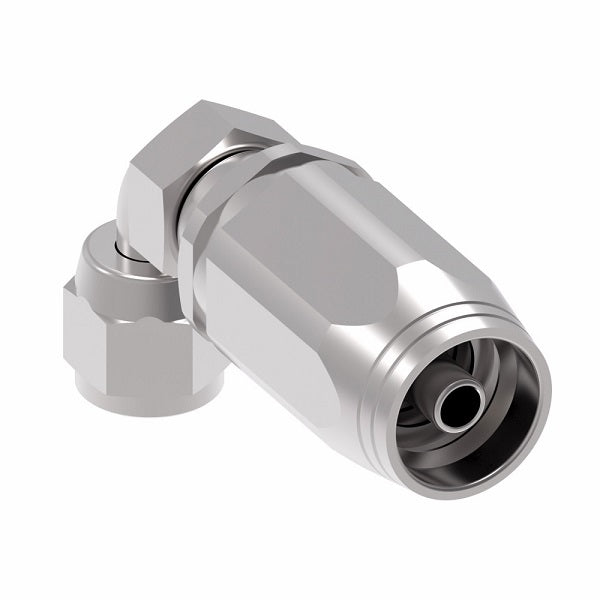

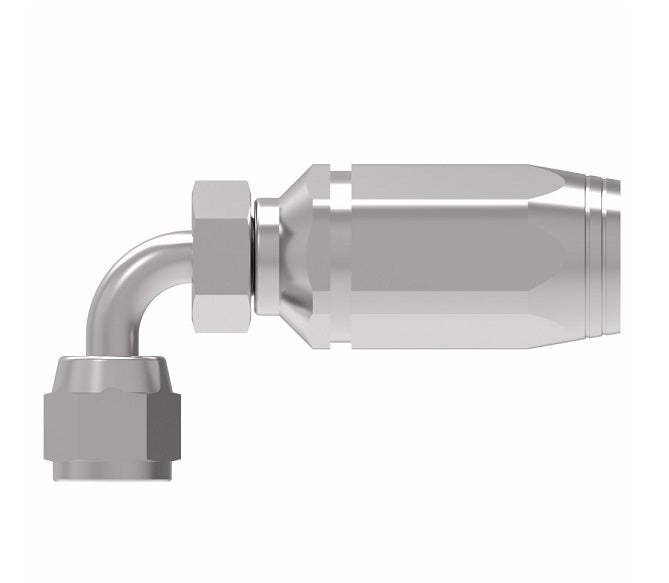

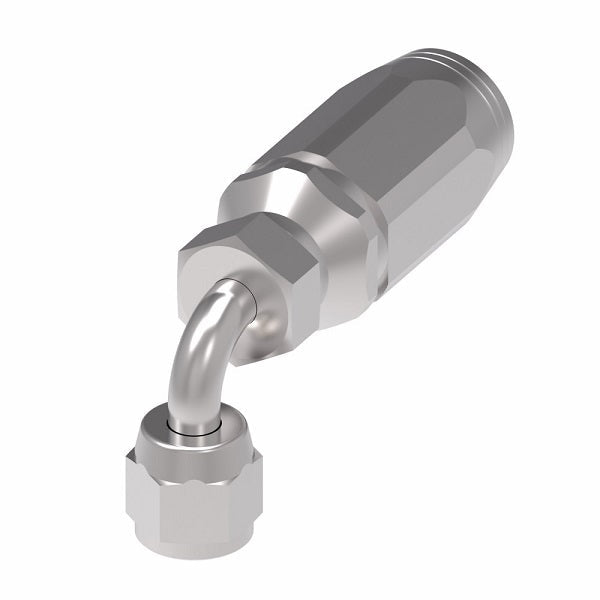

2RA4FJB4 Weatherhead by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel Short Drop - 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $49.24 |
| 40–79 | $44.52 |
| 80+ | $39.29 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
Component Part Numbers |
|||||||||
| Complete Fitting Part Number |
Nipple Assembly Part Number |
Reusable Socket Part Number |
Thread Size | Hose Size | A | D | EØ | H | |
| 2RA4FJB4 | 185264-4S | 2RA4 | 7/16-20 | -04 | 2.40" | 1.23" | 0.17" | 0.68" | |
| 2RA6FJB6 | 185264-6S | 2RA6 | 9/16-18 | -06 | 2.72" | 1.38" | 0.31" | 0.85" | |
| 2RA8FJB8 | 185264-8S | 2RA8 | 3/4-16 | -08 | 3.02" | 1.52" | 0.39" | 1.09" | |
| 2RA12FJB12 | 185264-12S | 2RA12 | 1-1/16-12 | -12 | 4.11" | 2.24" | 0.61" | 1.82" | |
| 2RA16FJB16 | 185264-16S | 2RA16 | 1-5/16-12 | -16 | 4.84" | 2.79" | 0.82" | 2.39" | |
