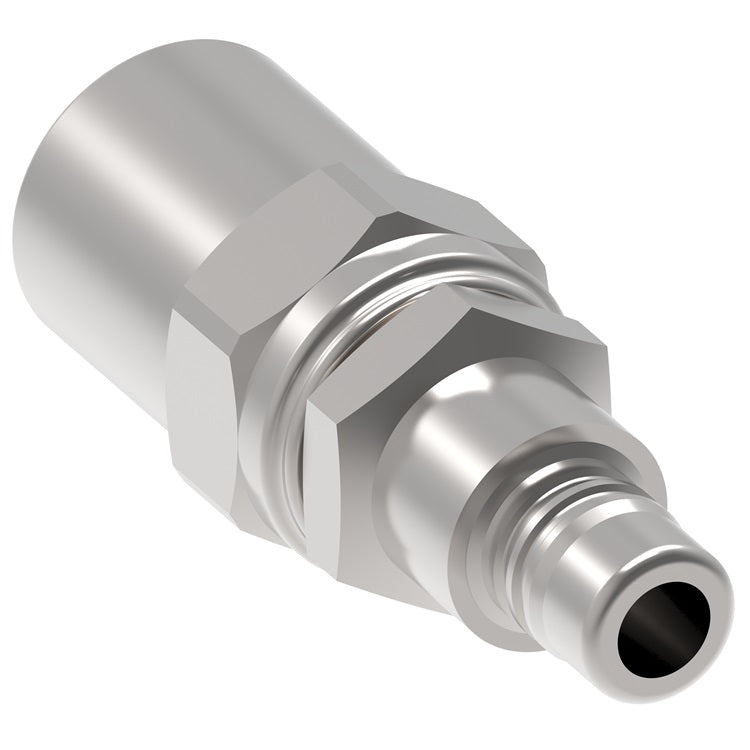

2L23D7 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 5/8" Hose OD | 3/8" Hose ID x 1/4" Body Size | Plug | Steel
2L23D7 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 5/8" Hose OD | 3/8" Hose ID x 1/4" Body Size | Plug | Steel
2L23D7 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 5/8" Hose OD | 3/8" Hose ID x 1/4" Body Size | Plug | Steel

2L23D7 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 5/8" Hose OD | 3/8" Hose ID x 1/4" Body Size | Plug | Steel

Sale price$21.42

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Buy More, Save More!
Quantity Price Each
10–39 $20.13
40–79 $18.21
80+ $16.07
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 2RL Series
Shape:

Straight
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
2RL Series | Socket
Part Number Coupling Type Body Size Hose ID Hose OD End Type Figure Dimensions
A B Hex
2R18B3 Socket/Female 1/4" 1/4" 1/2" Hose Crimp End 1 2.73"
(69.3mm)		 1.06"
(26.9mm)		 0.63"
(16.00mm)
2R18B7 Socket/Female 1/4" 1/4" 5/8" Hose Crimp End 1 2.73"
(69.3mm)		 1.06"
(26.9mm)		 0.75"
(19.05mm)
2R185C7 Socket/Female 1/4" 5/16" 5/8" Hose Crimp End 1 2.79"
(70.9mm)		 1.06"
(26.9mm)		 0.75"
(19.05mm)
2R23D7 Socket/Female 1/4" 3/8" 5/8" Hose Crimp End 1 2.85"
(72.4mm)		 1.06"
(26.9mm)		 0.75"
(19.05mm)
2R23D9 Socket/Female 1/4" 3/8" 11/16" Hose Crimp End 1 2.85"
(72.4mm)		 1.06"
(26.9mm)		 0.81"
(20.57mm)
2R23D11 Socket/Female 1/4" 3/8" 3/4" Hose Crimp End 1 2.85"
(72.4mm)		 1.06"
(26.9mm)		 0.88"
(22.35mm)
2R28P13 Socket/Female 1/4" 1/2" 13/16" Hose Crimp End 1 3.48"
(88.4mm)		 1.06"
(26.9mm)		 0.94"
(23.88mm)
2R28P15 Socket/Female 1/4" 1/2" 7/8" Hose Crimp End 1 3.48"
(88.4mm)		 1.06"
(26.9mm)		 1.00"
(25.40mm)
2RL Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Figure Dimensions
C D Hex
2L18B3 Plug/Male 1/4" 1/4" 1/2" Hose Crimp End 2 2.23 "
(56.6mm)		 0.70"
(17.8mm)		 0.63"
(16.00mm)
2L185C7 Plug/Male 1/4" 5/16" 5/8" Hose Crimp End 2 2.29"
(58.2mm)		 0.84"
(21.3mm)		 0.75"
(19.05mm)
2L185C9 Plug/Male 1/4" 5/16" 11/16" Hose Crimp End 2 2.29"
(58.2mm)		 0.91"
(23.1mm)		 0.81"
(20.57mm)
2L23D7 Plug/Male 1/4" 3/8" 5/8" Hose Crimp End 2 2.35"
(59.7mm)		 0.84"
(21.3mm)		 0.75"
(19.05mm)
2L23D9 Plug/Male 1/4" 3/8" 11/16" Hose Crimp End 2 2.35"
(59.7mm)		 0.91"
(23.1mm)		 0.81"
(20.57mm)
2L23D11 Plug/Male 1/4" 3/8" 3/4" Hose Crimp End 2 2.35"
(59.7mm)		 0.98"
(24.9mm)		 0.88"
(22.35mm)
2L28P13 Plug/Male 1/4" 1/2" 13/16" Hose Crimp End 2 3.41"
(86.6mm)		 1.05"
(26.7mm)		 0.94"
(23.88mm)
2L28P15 Plug/Male 1/4" 1/2" 7/8" Hose Crimp End 2 3.41"
(86.6mm)		 1.12"
(28.4mm)		 1.00"
(25.40mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
