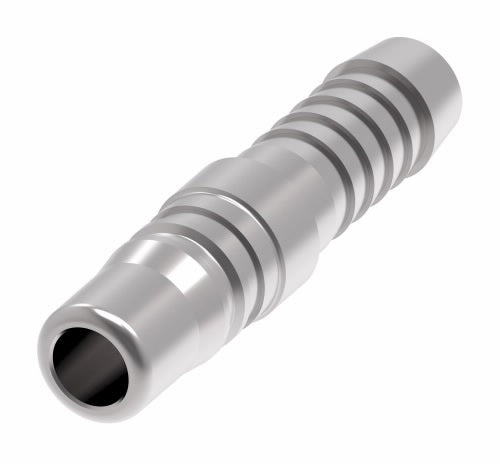

2L195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
2L195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
2L195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel

2L195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Plug | Steel

Sale price$52.94

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $49.76
40–79 $45.00
80+ $39.71
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 2RL Series
Shape:

Straight
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
2RL Series | Socket
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
A B
2R17 Socket/Female 1/4" 1/4" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2R195 Socket/Female 1/4" 5/16" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2R22 Socket/Female 1/4" 3/8" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2R27 Socket/Female 1/4" 1/2" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2RL Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
C D
2L17 Plug/Male 1/4" 1/4" Hose Barb 2 2.13"
(54.1mm)		 0.50"
(12.7mm)
2L195 Plug/Male 1/4" 5/16" Hose Barb 2 2.13"
(54.1mm)		 0.50"
(12.7mm)
2L22 Plug/Male 1/4" 3/8" Hose Barb 2 2.13"
(54.1mm)		 0.50"
(12.7mm)
2L17 Plug/Male 1/4" 1/2" Hose Barb 2 2.5"
(63.5mm)		 0.81"
(20.6mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
