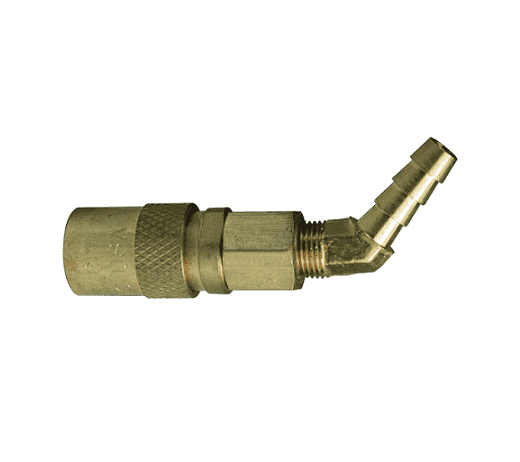

2CM4S2-B Dixon Valve Brass CM-Series Quick Disconnect 1/4" Industrial Mold Interchange Valved Hydraulic Coupler - 45 deg. - Hose Barb - 1/4" Hose ID

2CM4S2-B Dixon Valve Brass CM-Series Quick Disconnect 1/4" Industrial Mold Interchange Valved Hydraulic Coupler - 45 deg. - Hose Barb - 1/4" Hose ID

Sale price$18.23

Dixon Quick Disconnect Couplings - CM-Series Hydraulic Couplings - CM-Series Industrial Mold Interchange Valved Coupler (45 deg. Hose Barb)
Buy More, Save More!
Quantity Price Each
10–39 $17.14
40–79 $15.50
80+ $13.67
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/4in Female CM-Series QD Interchange
  • 1/4in Hose Barb
Material(s):
  • Brass
Specifications:
  • Rated pressure for connected Brass Valved Coupler and Brass Plug: 300 PSI (20 bar) Maximum Working and 6,000 PSI (400 bar) Burst
  • Rated pressure for connected Brass Valved Coupler and Steel Plug: 500 PSI (35 bar) Maximum Working and 6,100 PSI (400 bar) Burst
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Compatibility & Interchange Data:
  • Mold Coolant Interchange
  • Foster Series- FJT
  • Hansen Flo-Temp
  • Tomco MC-Series
  • Parker Moldmate
  • DME Jiffy-Tite
Seal Components:
  • Silicon gaskets and valve O-rings are standard, providing a temperature range of -90 deg. F to +400 deg. F (-68 deg. C to +205 deg. C).
Other Components:
Notes:
  • Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings.
  • WARNING: Brass products contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Size Hose ID Material Length Max. OD Hex Weight (Lbs.)
2CM4S2-B 1/4" 1/4" brass 2.87" 0.69" N/A 0.1300
2CM4S2.5-B 1/4" 5/16" brass 2.89" 0.69" N/A 0.1300
2CM4S3-B 1/4" 3/8" brass 2.91" 0.69" N/A 0.1400
3CM4S3-B 3/8" 3/8" brass 3.83" 0.95" N/A 0.3600
3CM4S4-B 3/8" 1/2" brass 3.86" 0.95" N/A 0.3600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
