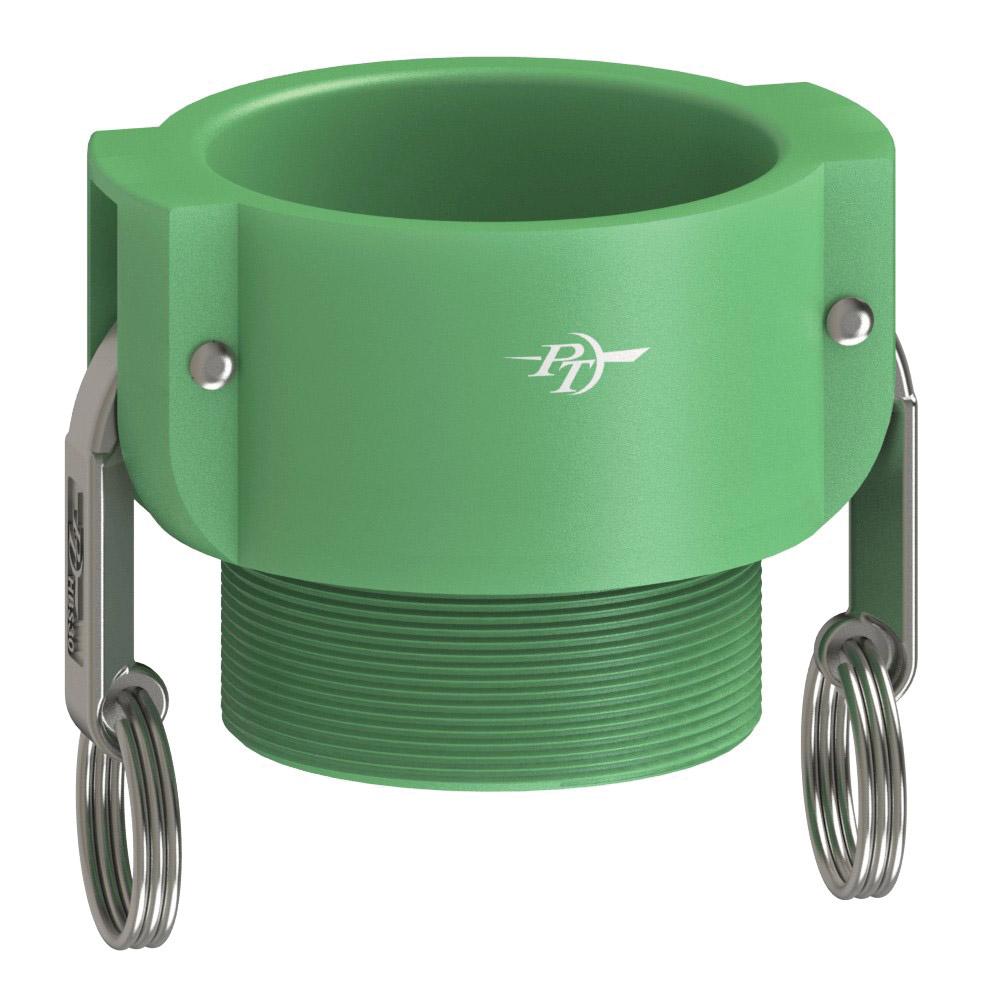

2900215 (15B) by PT-Coupling | Cam & Groove Adapter | Type B | 1-1/2" Coupler x 1-1/2" Male NPT | Nylon | Buna-N Seal

2900215 (15B) by PT-Coupling | Cam & Groove Adapter | Type B | 1-1/2" Coupler x 1-1/2" Male NPT | Nylon | Buna-N Seal

Sale price$28.58

PT Coupling
Cam and Groove (Camlock) Adapter | Type B | Coupler x Male NPT Thread | Nylon

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $26.87
40–79 $24.29
80+ $21.44
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type B

Ends Configuration:
  • 1-1/2in Female Cam & Groove
  • 1-1/2in Male NPT
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Glass-fiber reinforced for strength. Good abrasion, corrosion and chemical resistance.
  • Color: Green
  • Use with water, coolants, gasoline and varnish.
  • Made in the USA
Part Name Item # Coupler
Size		 Thread
(Male NPT)		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
10B 2900210 1" 1" 5.10" 2.44" 2.50" 1.56" 0.97" 1.19" 100 PSI 0.334 lbs.
15B 2900215 1-1/2" 1-1/2" 7.16" 3.56" 2.93" 1.88" 1.50" 1.48" 100 PSI 1.011 lbs.
20B 2900220 2" 2" 7.54" 3.94" 3.20" 2.15" 1.88" 1.75" 100 PSI 0.778 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
