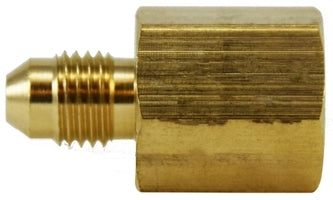

28957 by Midland | JIC 37° Flare | 1/4" Tube OD | 1/8-27" Pipe | 7/16-20 Tube Thread | Straight | Adapter | Brass
Midland Industries
Brass Fitting - JIC 37° Flare - Female Straight Adapter - Male JIC 37° Flare x Female Pipe - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.63 |
| 40–79 | $10.51 |
| 80+ | $9.28 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
| Part Number | Tube OD | Pipe | Tube Thread | Length | Hex | Working Pressure |
|---|---|---|---|---|---|---|
| 28957 (28-957) |
1/4" | 1/8-27 | 7/16-20 | 1.19" | 0.56" | 3250 PSI |
| 28958 (28-958) |
1/4" | 1/4-18 | 7/16-20 | 1.40" | 0.75" | 3250 PSI |
| 28959 (28-959) |
3/8" | 1/4-18 | 9/16-18 | 1.40" | 0.75" | 3250 PSI |
| 28960 (28-960) |
3/8" | 3/8-18 | 9/16-18 | 1.40" | 0.88" | 3250 PSI |
| 28961 (28-961) |
1/2" | 3/8-18 | 3/4-16 | 1.56" | 0.88" | 3250 PSI |
| 28962 (28-962) |
1/2" | 1/2-14 | 3/4-16 | 1.79" | 1.13" | 3250 PSI |
| 28963 (28-963) |
5/8" | 1/2-14 | 7/8-14 | 1.87" | 1.13" | 3250 PSI |
| 28964 (28-964) |
3/4" | 3/4-1/4 | 1-1/16-12 | 2.06" | 1.38" | 2600 PSI |
