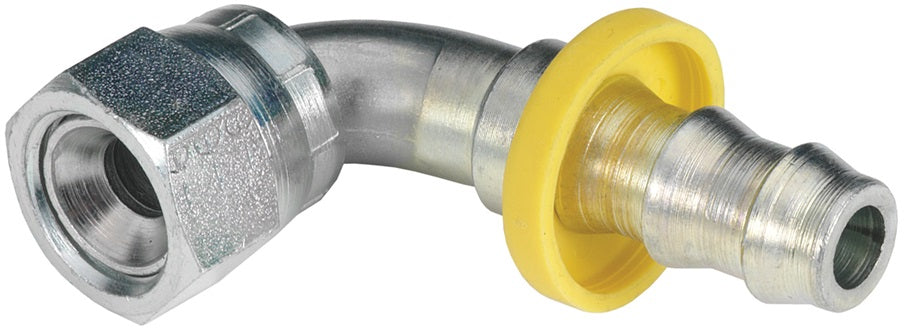

2890407CSAE by Dixon Valve | Push-On Hose Barb Fitting | Female 45° SAE Swivel | 90° Elbow | 1/4" Tube OD | 1/4" Hose ID x 1/4" Female JIC | Plated Steel

2890407CSAE by Dixon Valve | Push-On Hose Barb Fitting | Female 45° SAE Swivel | 90° Elbow | 1/4" Tube OD | 1/4" Hose ID x 1/4" Female JIC | Plated Steel

Sale price$32.05

Dixon Valve
Push-On Hose Barb Fitting | 90° Elbow | Female 37° JIC / 45° SAE Swivel x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Buy More, Save More!
Quantity Price Each
10–39 $30.13
40–79 $27.24
80+ $24.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • 289 Series
Shape:

90 Degree

Ends Configuration:
  • 1/4in Hose Barb
  • 1/4in Female JIC
Features:
  • No hose clamps or ferrules are needed for installation.
Material:
  • Plated Steel
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Part Number Previous
Part Number		 Hose I.D. Tube O.D. Female UNF
2890407C** 289-0407 1/4" 1/4" 7/16"-20
2890407CSAE* 289-0407SAE 1/4" 1/4" 7/16"-20
2890609C** 289-0609 3/8" 3/8" 9/16"-18
2890610CSAE* 289-0610SAE 3/8" 3/8" 5/8"-18
2890812C** 289-0812 1/2 1/2" 3/4"-16
2891217C** 289-1217 3/4" 3/4" 1-1/16"-12***

* Notch in nut for SAE identification
** JIC only, may substitute dual angle
*** UN Thread
