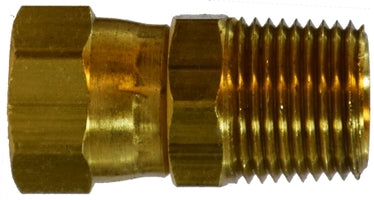

28756 by Midland | JIC 37° Flare | Swivel | 1/2" Tube OD | 1/2-14" Male NPTF | 3/4-16" Tube Thread | Straight | Adapter | Brass

28756 by Midland | JIC 37° Flare | Swivel | 1/2" Tube OD | 1/2-14" Male NPTF | 3/4-16" Tube Thread | Straight | Adapter | Brass

Sale price$45.26
Buy more, save moreDiscounts applied in cart/checkout.
Crossover Series:
B6505 SJS
Part Number Tube OD A NPTF Tube Thread Length Hex Working Pressure
28752
(28-752)		 1/4" 1/4-18 7/16-20 1.389" 0.563" 3250 PSI
28753
(28-753)		 3/8" 1/4-18 9/16-18 1.600" 0.563" 3250 PSI
28754
(28-754)		 3/8" 3/8-18 9/16-18 1.574" 0.690" 2925 PSI
28756
(28-756)		 1/2" 1/2-14 3/4-16 1.706" 0.875" 2600 PSI

Additional Product Data:

Shape:

Straight

Material(s):
  • Brass

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
