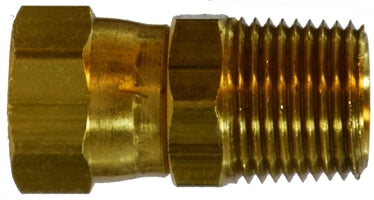

28753 by Midland | JIC 37° Flare | Swivel | 3/8" Tube OD | 1/4-18" Male NPTF | 9/16-18" Tube Thread | Straight | Adapter | Brass
Midland Industries
Brass Fitting - JIC 37° Flare - Straight Swivel Adapter - Female JIC x Male NPTF - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.59 |
| 40–79 | $15.00 |
| 80+ | $13.24 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
| Crossover Series: | |
|---|---|
| B6505 | SJS |
| Part Number | Tube OD | A NPTF | Tube Thread | Length | Hex | Working Pressure |
|---|---|---|---|---|---|---|
| 28752 (28-752) |
1/4" | 1/4-18 | 7/16-20 | 1.389" | 0.563" | 3250 PSI |
| 28753 (28-753) |
3/8" | 1/4-18 | 9/16-18 | 1.600" | 0.563" | 3250 PSI |
| 28754 (28-754) |
3/8" | 3/8-18 | 9/16-18 | 1.574" | 0.690" | 2925 PSI |
| 28756 (28-756) |
1/2" | 1/2-14 | 3/4-16 | 1.706" | 0.875" | 2600 PSI |
