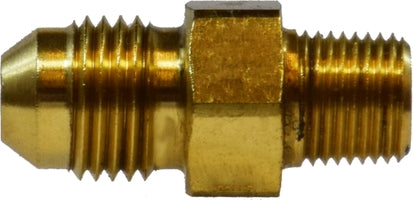

28717 by Midland | JIC 37° Flare | 3/4" Tube OD | 3/4-14" Male NPTF | 1-1/16-12 Tube Thread | Straight | Brass
Midland Industries
Brass Fitting - JIC 37° Flare - Male JIC 37° Flare x Male NPTF - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $25.07 |
| 40–79 | $22.67 |
| 80+ | $20.00 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
| Crossover Series: | ||
|---|---|---|
| B2404 | SB | FTXB |
| Part Number | Tube OD | A NPTF | Tube Thread | Length | Hex | Working Pressure |
|---|---|---|---|---|---|---|
| 28701 (28-701) |
1/4" | 1/8-27 | 7/16-20 | 1.22" | 0.45" | 3250 PSI |
| 28702 (28-702) |
1/4" | 1/4-18 | 7/16-20 | 1.37" | 0.56" | 3250 PSI |
| 28703 (28-703) |
1/4" | 3/8-18 | 7/16-20 | 1.42" | 0.75" | 3250 PSI |
| 28704 | 5/16" | 1/8-27 | 1/2-20 | 1.41" | 0.56" | 3250 PSI |
| 28705 (28-705) |
5/16" | 1/4-18 | 1/2-20 | 1.42" | 0.56" | 3250 PSI |
| 28706 (28-706) |
3/8" | 1/8-27 | 9/16-18 | 1.24" | 0.63" | 3250 PSI |
| 28707 (28-707) |
3/8" | 1/4-18 | 9/16-18 | 1.43" | 0.63" | 3250 PSI |
| 28708 (28-708) |
3/8" | 3/8-18 | 9/16-18 | 1.38" | 0.75" | 3250 PSI |
| 28709 (28-709) |
3/8" | 1/2-14 | 9/16-18 | 1.69" | 0.88" | 3250 PSI |
| 28710 (28-710) |
1/2" | 1/4-18 | 3/4-16 | 1.53" | 0.81" | 3250 PSI |
| 28711 (28-711) |
1/2" | 3/8-18 | 3/4-16 | 1.53" | 0.81" | 3250 PSI |
| 28712 (28-712) |
1/2" | 1/2-14 | 3/4-16 | 1.79" | 0.88" | 3250 PSI |
| 28713 (28-713) |
1/2" | 3/4-14 | 3/4-16 | 1.85" | 1.13" | 2600 PSI |
| 28714 | 5/8" | 3/8 | 7/8-14 | 1.84" | 0.94" | 3250 PSI |
| 28715 (28-715) |
5/8" | 1/2-14 | 7/8-14 | 1.89" | 0.94" | 3250 PSI |
| 28716 (28-716) |
5/8" | 3/4-14 | 7/8-14 | 1.95" | 1.13" | 2600 PSI |
| 28748 (28-748) |
3/4" | 1/2-14 | 1-1/16-12 | 2.06" | 1.13" | 2925 PSI |
| 28717 (28-717) |
3/4" | 3/4-14 | 1-1/16-12 | 2.06" | 1.13" | 2600 PSI |
| 28749 (28-749) |
3/4" | 1-11-1/2 | 1-1/16-12 | 2.25" | 1.38" | 1950 PSI |
| 28719 (28-719) |
1" | 3/4-14 | 1-5/16-12 | 2.06" | 1.13" | 2275 PSI |
| 28718 (28-718) |
1" | 1-11-1/2 | 1-5/16-12 | 2.30" | 1.38" | 1950 PSI |
