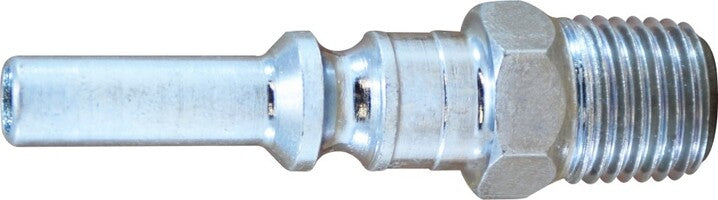

28686 by Midland | Lincoln Interchange | Pneumatic Plug | 1/4" Male Pipe | 1/4" Body Size | Steel
Midland Industries

28686 by Midland | Lincoln Interchange | Pneumatic Plug | 1/4" Male Pipe | 1/4" Body Size | Steel

Sale price$9.89

Midland Industries
Lincoln Interchange Pneumatic Coupler

Product Data:

Shape:

["Straight"]

Ends Configuration:
  • 1/4in Male NPT
  • 1/4in Male Lincoln QD Interchange
Material(s):
  • Steel
Features:
  • Couplers have brass bodies with steel sleeves, Acetal valves, 6 steel locking balls, Nitrile seal and stainless steel springs.
  • Plugs are steel with green blue zinc plating.
  • Manual style.
  • Unique design includes long nose and short ball groove.
  • Maximum working pressure is 250 PSI.
Couplers Plugs
Brass Male Coupler

 Steel Male Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 28685
(28-685)		 1/8" 1/4"
28683
(28-683)		 1/4" 1/4" 28686
(28-686)		 1/4" 1/4"
Brass/Steel Female Coupler

 Steel Female Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28684
(28-684)		 1/4" 1/4" 28687
(28-687)		 1/4" 1/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
