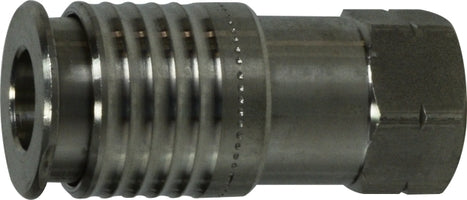

28560SS by Midland | Universal Series Pneumatic Coupler | 1/4" Female NPT | 1/4" Body Size | Stainless Steel

28560SS by Midland | Universal Series Pneumatic Coupler | 1/4" Female NPT | 1/4" Body Size | Stainless Steel

Sale price$157.88

Midland Industries
Universal Series Pneumatic Coupler
Buy More, Save More!
Quantity Price Each
5–19 $148.41
20–59 $134.20
60+ $118.41
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female Universal Pneumatic QD Interchange
Material(s):
  • Stainless Steel
Features:
  • Automatic Coupler means flow will cut off automatically at time of disconnect.
  • Brass Couplers have brass body and brass sleeve with brass valve, 6 steel locking balls, NBR seal and 6 stainless steel springs.
  • Stainless Steel Couplers have stainless steel body and stainless steel sleeve with stainless steel valve, 6 steel locking balls, FKM seal, and stainless steel springs.
  • Coupler compatible with ARO 210, Parker Interchange and Industrial Interchange plugs.
  • Maximum working pressure is 250 PSI.
Couplers Plugs
Brass Male Coupler
Part Number Thread Size Body Size Part Number Thread Size Body Size
28579
(28-579)		 1/4" 1/4" - - -
28589
(28-589)		 3/8" 1/4" - - -
Brass Female Coupler
Part Number Thread Size Body Size Part Number Thread Size Body Size
28560
(28-560)		 1/4" 1/4" - - -
Brass Hose Barb Coupler
Part Number Thread Size Body Size Part Number Thread Size Body Size
28690
(28-690)		 1/4" 1/4" - - -
28691
(28-691)		 3/8" 1/4" - - -
Stainless Steel Male Coupler

 Stainless Steel Industrial Male Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28579SS
(28-579SS)		 1/4" 1/4" 28546SS
(28-546SS)		 1/4" 1/4"
Stainless Steel Female Coupler

 Stainless Steel Industrial Female Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28560SS
(28-560SS)		 1/4" 1/4" 28534SS
(28-534SS)		 1/4" 1/4"
