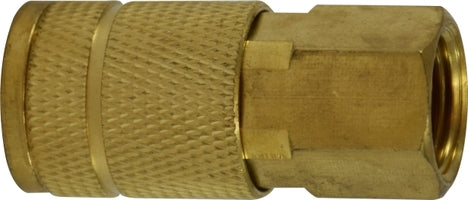

28508 by Midland | Automotive/Parker Interchange (Tru-Flate) | Pneumatic Coupler | 3/8" Female Pipe | 1/4" Body Size | Brass

28508 by Midland | Automotive/Parker Interchange (Tru-Flate) | Pneumatic Coupler | 3/8" Female Pipe | 1/4" Body Size | Brass

Sale price$21.61

Midland Industries
Automotive/ Parker Interchange (Tru-flate) Pneumatic Coupler
Buy More, Save More!
Quantity Price Each
10–39 $20.31
40–79 $18.37
80+ $16.21
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Female NPT
  • 1/4in Female Tru-Flate QD Interchange
Material(s):
  • Brass
Features:
  • Brass couplers are brass bodies with brass valves, 6 steel locking balls, NBR seal, and stainless steel springs.
  • Steel couplers are steel bodies with steel valves, 6 stainless steel locking balls, NBR seal, and stainless steel springs.
  • Plugs are brass or steel with green blue zinc plating.
  • Unique design has been field proven as a long-lasting, high performance coupling especially when used with pneumatic tools.
  • Maximum working pressure is 300 PSI.
Couplers Plugs
Brass Male Coupler

 Brass Male Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28515
(28-515)		 1/8" 1/4" - - -
28516
(28-516)		 1/4" 1/4" 28510B
(28-510B)		 1/4" 1/4"
28517
(28-517)		 3/8" 1/4" - - -
Brass Female Coupler

 Brass Female Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28507
(28-507)		 1/4" 1/4" 28501B
(28-501B)		 1/4" 1/4"
28508
(28-508)		 3/8" 1/4" - - -
Steel Male Coupler

 Steel Male Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 28509
(28-509)		 1/8" 1/4"
28516S
(28-516S)		 1/4" 1/4" 28510
(28-510)		 1/4" 1/4"
- - - 28511
(28-511)		 3/8" 1/4"
28514S
(28-514S)		 1/4" 3/8" 28512
(28-512)		 1/4" 3/8"
28519S
(28-519S)		 3/8" 3/8" 28513
(28-513)		 3/8" 3/8"
Steel Female Coupler

 Steel Female Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 28500
(28-500)		 1/8" 1/4"
28507S
(28-507S)		 1/4" 1/4" 28501
(28-501)		 1/4" 1/4"
- - - 28502
(28-502)		 3/8" 1/4"
28525S
(28-525S)		 1/4" 3/8" 28503
(28-503)		 1/4" 3/8"
28526S
(28-526S)		 3/8" 3/8" 28504
(28-504)		 3/8" 3/8"
Brass Hose Barb Coupler

 Steel Hose Barb Plug
Part Number Hose ID Body Size Part Number Hose ID Body Size
28528
(28-528)		 1/4" 1/4" 28518
(28-518)		 1/4" 1/4"
28530
(28-530)		 3/8" 1/4" 28520
(28-520)		 3/8" 1/4"
28536
(28-536)		 1/4" 3/8" 28523
(28-523)		 1/4" 3/8"
- - - 28524
(28-524)		 3/8" 3/8"
Brass Push-On Hose Barb Coupler

 Steel Push-On Hose Barb Plug
Part Number Hose ID Body Size Part Number Hose ID Body Size
28531
(28-531)		 1/4" 1/4" 28521
(28-521)		 1/4" 1/4"
28532
(28-532)		 3/8" 1/4" 28522
(28-522)		 3/8" 1/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
