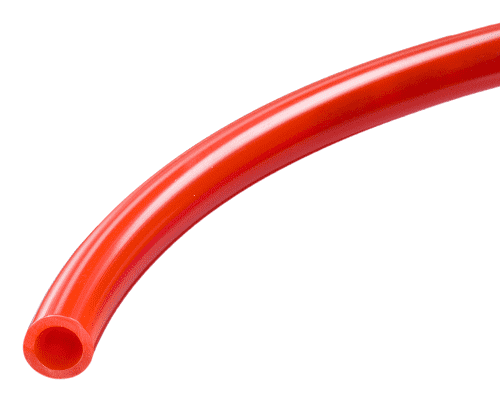

2844-04X100 Kuri-Tec by Kuriyama | 2844 Series | 95 Shore "A" Ether-Based Heavy Duty Tubing | 1/4" ID | .375" OD | Red | Polyurethane | 100ft Length
Kuriyama Kuri Tec® Series 2844 95 Shore "A" Ether-Based Red Heavy Duty Polyurethane Tubing Ether-based polyurethane tubing available in colors for transfer of air, fluids and abrasive slurries.
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $106.05 |
| 20–59 | $95.90 |
| 60+ | $84.62 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
125
Tubing Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | Transfer of air and fluids under severe conditions. Feed and return lines, Abrasive slurry transfer, Granular transfer lines, Robotics control lines, Insulating sleeves, Lubrication lines, Metering pumps | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 95 Shore "A" Durometer ether-based polyurethane tubing in Red |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | 40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(15) |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal OD | Working Pressure | Standard Lengths | Approx Weight per Pkg | ||||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | @ 70 deg. F (20 deg. C) (PSI) | @ 122 deg. F (50 deg. C) (PSI) | Spool/Box | Coil/Box | ||
| 2844-04X100 | 1/4" | 6.5mm | .375" | 9.5mm | 125 PSI | 75 PSI | N/A | 100ft | 3.1 lbs. |
| 2844-04X300 | 1/4" | 6.5mm | .375" | 9.5mm | 125 PSI | 75 PSI | 300ft | N/A | 9.5 lbs. |
| 2844-05X100 | 5/16" | 8.0mm | .472" | 12.0mm | 125 PSI | 75 PSI | N/A | 100 ft | 4.9 lbs. |
| 2844-05X300 | 5/16" | 8.0mm | .472" | 12.0mm | 125 PSI | 75 PSI | 300 ft | N/A | 14.7 lbs |
| 2844-06X100 | 3/8" | 9.5mm | .570" | 14.5mm | 125 PSI | 75 PSI | N/A | 100ft | 7.2 lbs. |
| 2844-06X300 | 3/8" | 9.5mm | .570" | 14.5mm | 125 PSI | 75 PSI | 300ft | N/A | 21.7 lbs |
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: When exceptional oil and fuel resistance is needed, we suggest use of Series 2810 ester-based tubing which is RoHS(15) compliant - call for details.
