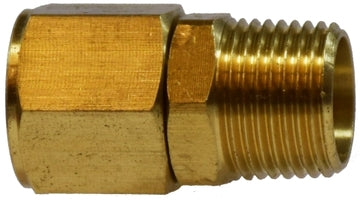

28426 by Midland | Pipe Swivel | 3/8" Female NPTF x 3/8" Male NPTF | Adapter | Brass
Midland Industries
Brass Fitting - Pipe Thread - Pipe Swivel Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $25.13 |
| 40–79 | $22.72 |
| 80+ | $20.05 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 300 PSI | 300 PSI | 300 PSI | 300 PSI | 300 PSI | 300 PSI | 300 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Thread Size Female NPTF x Male NPTF |
A | Hex 1 | Hex 2 | Approx. Weight (Lbs.) |
||||||||||
| 28424 (28-424) |
1/8" | 1.10" | 0.43" | 0.50" | 0.05 | ||||||||||
| 28425 (28-425) |
1/4" | 1.34" | 0.56" | 0.62" | 0.06 | ||||||||||
| 28426 (28-426) |
3/8" | 1.36" | 0.68" | 0.75" | 0.08 | ||||||||||
| 28427 (28-427) |
1/2" | 1.87" | 0.87" | 0.95" | 0.10 | ||||||||||
(300 PSI all sizes)
