28353 (28-353) by Midland | Pneumatic Pressure Snubber | 1/4" Male Pipe | Porosity: 30um | Straight | Brass
Midland Industries

28353 (28-353) by Midland | Pneumatic Pressure Snubber | 1/4" Male Pipe | Porosity: 30um | Straight | Brass

Sale price$20.89

Midland Industries
Pneumatic Pressure Snubber - Brass

Application: Protect pressure instruments from sudden pressure surges and fluctuations providing more accurate gauge readings.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male NPT
  • 1/4in Male NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Body: Brass
  • Element: Sintered Bronze.
  • Max Operating Pressure: 9000 PSI
  • Temperature: 35° to 300°F

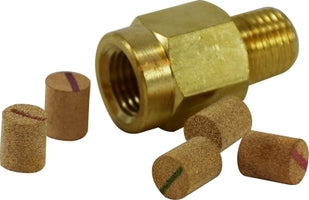

  • Construction: Solid brass housing with porous bronze element.
  • Can be used for mini in-line filters.
  • 5 different porosity elements per package, allows each user to adjust snubbing capacity for the specific application.
Recommended Element Porosity Rating
Rating Color Recommended Application
40 um None Viscous Fluids (over 500 ssu)
Part Number Size Porosity
28354
(28-354)		 1/4" 40 um
28353
(28-353)		 1/4" 30 um
28352
(28-352)		 1/4" 25 um
28351
(28-351)		 1/4" 20 um
28350
(28-350)		 1/4" 10 um
