28352 by Midland | Pneumatic Pressure Snubber | 1/4" Male Pipe | Porosity: 25um | Brass
Midland Industries

28352 by Midland | Pneumatic Pressure Snubber | 1/4" Male Pipe | Porosity: 25um | Brass

Sale price$20.18

Midland Industries

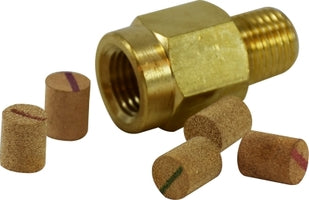

Pneumatic Pressure Snubber - Brass

Application: Protect pressure instruments from sudden pressure surges and fluctuations providing more accurate gauge readings.

Product Data:

Shape:

No Orientation

Material(s):
  • Brass
Features:
  • Body: Brass
  • Element: Sintered Bronze.
  • Max Operating Pressure: 9000 PSI
  • Temperature: 35° to 300°F
  • Construction: Solid brass housing with porous bronze element.
  • Can be used for mini in-line filters.
  • 5 different porosity elements per package, allows each user to adjust snubbing capacity for the specific application.
Recommended Element Porosity Rating
Rating Color Recommended Application
40 um None Viscous Fluids (over 500 ssu)
Part Number Size Porosity
28354
(28-354)		 1/4" 40 um
28353
(28-353)		 1/4" 30 um
28352
(28-352)		 1/4" 25 um
28351
(28-351)		 1/4" 20 um
28350
(28-350)		 1/4" 10 um

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
