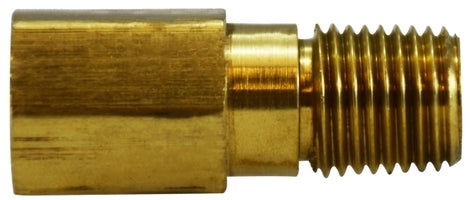

28339 by Midland | Long Extension | D.O.T. Approved | 1/4" Female NPTF x 1/4" Male NPTF | 1-13/16" Length | Straight | Adapter | Brass
Midland Industries
Brass Fitting - Pipe Thread - Long Extension Adapter (D.O.T. Approved)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.26 |
| 40–79 | $9.28 |
| 80+ | $8.19 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
 |
||||
|---|---|---|---|---|
| Part Number | NPTF Thread Size | A | Hex | Approx. Weight (Lbs.) |
| 28335 (28-335) |
1/8" | 1-1/4" | 0.50" | 0.04 |
| 28337 (28-337) |
1/8" | 3" | 0.50" | 0.09 |
| 28338 (28-338) |
1/4" | 1-9/16" | 0.62" | 0.07 |
| 28339 (28-339) |
1/4" | 1-13/16" | 0.62" | 0.08 |
| 28340 (28-340) |
1/4" | 2-1/16" | 0.62" | 0.10 |
