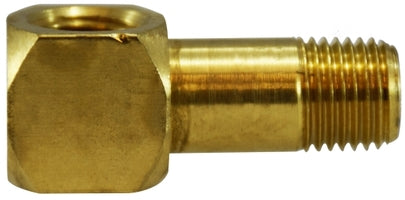

28328 (28-328) by Midland | (D.O.T. Approved) | 1/4" Female NPTF x 1/4" Male NPTF x 1-3/16" | Long | 90° Elbow | Brass
Midland Industries
Brass Fitting - Pipe Thread - Long Street 90° Elbow (D.O.T. Approved)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.45 |
| 40–79 | $13.97 |
| 80+ | $12.33 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
 |
||||
|---|---|---|---|---|
| Part Number | Thread Size Female NPTF x Male NPTF |
A | B | Approx. Weight (Lbs.) |
| 28440 (28-440) |
1/8" | 1-3/16" | 0.50" | 0.06 |
| 28441 (28-441) |
1/8" | 1-7/16" | 0.50" | 0.06 |
| 28443 (28-443) |
1/8" | 1-7/8" | 0.50" | 0.16 |
| 28328 (28-328) |
1/4" | 1-3/16" | 0.75" | 0.12 |
| 28329 (28-329) |
1/4" | 1-7/16" | 0.75" | 0.14 |
| 28330 (28-330) |
1/4" | 1-11/16" | 0.75" | 0.15 |
| 28333 (28-333) |
3/8" | 1-3/4" | 0.87" | 0.22 |
