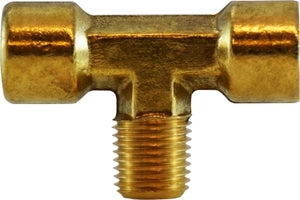

28281F by Midland | Forged Branch | 1/8" Female NPTF x 1/8" Female NPTF x 1/8" Male NPTF | Tee | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Forged Male Branch Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.03 |
| 40–79 | $5.45 |
| 80+ | $4.81 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: | |
|---|---|
| 131F | T9 |
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Thread Size Female NPTF x Female NPTF x Male NPTF |
A | B | Body Width | Approx. Weight (Lbs.) |
||||||||||
| 28281F (28-281F) |
1/8" | 0.75" | 0.56" | 0.50" | 0.06 | ||||||||||
| 28282F (28-282F) |
1/4" | 1.00" | 1.03" | 0.46" | 0.12 | ||||||||||
