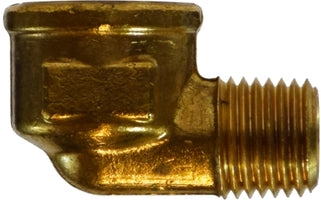

28262 by Midland | Forged Reducing | 1/4" Female NPTF x 3/8" Male NPTF | 90° Street Elbow | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Forged Reducing 90° Street Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $8.01 |
| 40–79 | $7.24 |
| 80+ | $6.39 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: |
|---|
| 128 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Thread Size Female NPTF x Male NPTF |
A | B | WrenchFlats | Approx. Weight (Lbs.) |
| 28259* | 1/8" x 1/16" | - | - | - | - |
| 28260 (28-260) |
1/8" x 1/4" | 0.50" | 0.87" | 0.71" | 0.08 |
| 28261B* (28-261B) |
1/4" x 1/8" | 0.53" | 0.72" | 0.69" | 0.07 |
| 28261 (28-261) |
1/4" x 1/8" | 0.50" | 0.81" | 0.72" | 0.06 |
| 28262 (28-262) |
1/4" x 3/8" | 0.93" | 1.06" | 0.59" | 0.12 |
| 28263 (28-263) |
3/8" x 1/4" | 0.58" | 0.94" | 0.81" | 0.07 |
| 28264 (28-264) |
3/8" x 1/2" | 0.97" | 1.36" | 1.00" | 0.28 |
| 28265 (28-265) |
1/2" x 3/8" | 0.96" | 1.37" | 1.00" | 0.22 |
| 28265B* (28-265B) |
1/2" x 3/8" | 1.03" | 1.11" | 1.00" | 0.24 |
* Barstock
