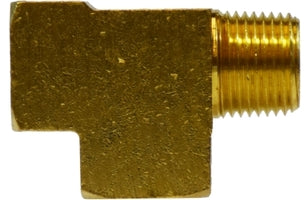

28248 by Midland | 1/2" Female NPTF x 1/2" Male NPTF x 1/2" Female NPTF | Service (Street ) Run Tee | Brass
Midland Industries
Brass Fitting - Pipe Thread - Street Tee/ Service Tee/ Male Run Tee
Product Data:
Shape:
["Tee"]
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | SAE# 130424 | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: |
|---|
| 127 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | Thread Size Female NPTF x Male NPTF x Female NPTF |
A | B | C | Approx. Weight (Lbs.) |
| 28245 (28-245) |
1/8" | 0.55" | 0.66" | 0.56" | 0.08 |
| 28246 (28-246) |
1/4" | 0.78" | 0.91" | 0.68" | 0.17 |
| 28247 (28-247) |
3/8" | 0.84" | 0.97" | 0.81" | 0.22 |
| 28248 (28-248) |
1/2" | 1.09" | 1.25" | 1.00" | 0.40 |
| 28249 (28-249) |
3/4" | 1.16" | 1.39" | 1.25" | 0.60 |
