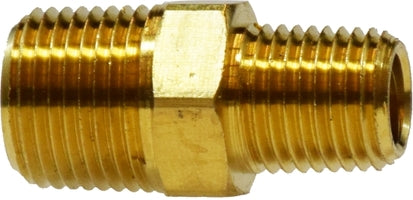

28225 by Midland | Reducing Hex Nipple | 3/4" Male NPTF x 1/2" Male NPTF | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Reducing Hex Nipple
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.74 |
| 40–79 | $6.09 |
| 80+ | $5.38 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | SAE# 130137 | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 123 | 216P | 3325 | 379 | 122AH | 122B |
 |
||||
|---|---|---|---|---|
| Part Number | Thread Size Male NPTF x Male NPTF |
A | Hex | Approx. Weight (Lbs.) |
| 28218 | 1/8" x 1/16" | 1.00" | 0.56" | 0.05 |
| 28220L (28-220L) |
1/4" x 1/8" | 1.00" | 0.56" | 0.04 |
| 28220 (28-220) |
1/4" x 1/8" | 1.19" | 0.56" | 0.04 |
| 28221L (28-221L) |
3/8" x 1/8" | 1.11" | 0.68" | 0.06 |
| 28221 (28-221) |
3/8" x 1/8" | 1.22" | 0.68" | 0.07 |
| 28222L (28-222L) |
3/8" x 1/4" | 1.19" | 0.68" | 0.06 |
| 28222 (28-222) |
3/8" x 1/4" | 1.41" | 0.68" | 0.07 |
| 28223L (28-223L) |
1/2" x 1/4" | 1.34" | 0.87" | 0.09 |
| 28223 (28-223) |
1/2" x 1/4" | 1.62" | 0.87" | 0.12 |
| 28224L (28-224L) |
1/2" x 3/8" | 1.41" | 0.87" | 0.11 |
| 28224 (28-224) |
1/2" x 3/8" | 1.62" | 0.87" | 0.12 |
| 28225L | 3/4" x 1/2" | 1.81" | 1.06" | 0.19 |
| 28225 (28-225) |
3/4" x 1/2" | 1.50" | 1.06" | 0.15 |
| 28227 | 1" x 3/4" | 2.31" | 1.38" | 0.38 |
