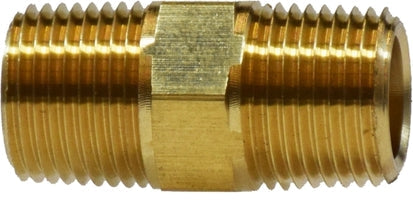

28213 by Midland | Hex Nipple | 3/8" Male NPTF x 1.41" Length | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Hex Nipple
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.39 |
| 40–79 | $3.07 |
| 80+ | $2.71 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | SAE# 130137 | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 122 | 216P | 3325 | 379 | 122AH | 122B |
 |
||||
|---|---|---|---|---|
| Part Number | Thread Size Male NPTF |
A | Hex | Approx. Weight (Lbs.) |
| 28210 | 1/16" | 0.97" | 0.38" | 0.02 |
| 28211L (28-211L) |
1/8" | 0.91" | 0.43" | 0.02 |
| 28211 (28-211) |
1/8" | 0.97" | 0.43" | 0.03 |
| 28212L (28-212L) |
1/4" | 1.12" | 0.56" | 0.04 |
| 28212 (28-212) |
1/4" | 1.38" | 0.56" | 0.06 |
| 28213L (28-213L) |
3/8" | 1.25" | 0.68" | 0.07 |
| 28213 (28-213) |
3/8" | 1.41" | 0.68" | 0.07 |
| 28214L (28-214L) |
1/2" | 1.50" | 0.87" | 0.11 |
| 28214 (28-214) |
1/2" | 1.81" | 0.87" | 0.17 |
| 28215L (28-215L) |
3/4" | 1.55" | 1.07" | 0.17 |
| 28215 (28-215) |
3/4" | 1.96" | 1.13" | 0.23 |
| 28216L (28-216L) |
1" | 1.75" | 1.39" | 0.22 |
| 28216 (28-216) |
1" | - | - | 0.43 |
