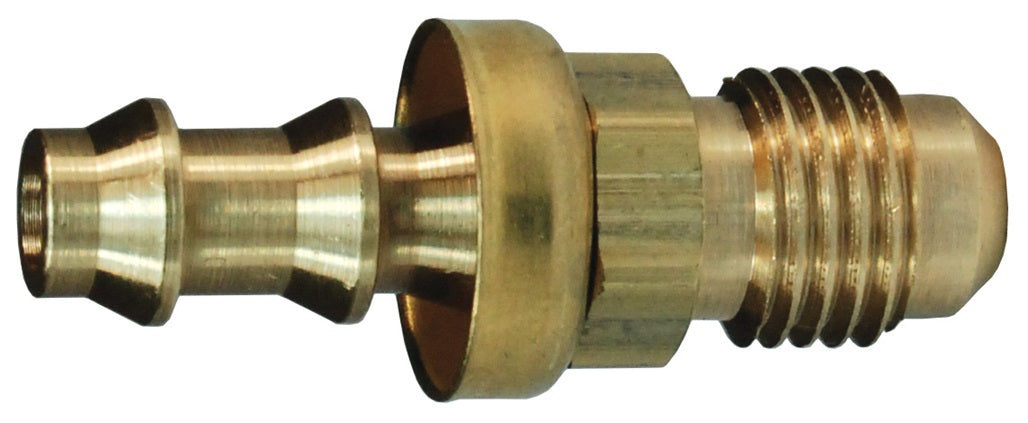

2820408CBC by Dixon Valve | Push-On Hose Barb Fitting | Male 45° SAE Swivel | with Brass Cap | 5/16" Tube OD | 1/4" Hose ID x 5/16" Male SAE 45° Flare | Brass

2820408CBC by Dixon Valve | Push-On Hose Barb Fitting | Male 45° SAE Swivel | with Brass Cap | 5/16" Tube OD | 1/4" Hose ID x 5/16" Male SAE 45° Flare | Brass

Minimum Order Quantity: 5 Units

Sale price$7.52

Dixon Valve
Push-On Hose Barb Fitting | Male 45° SAE Swivel | Male UNF x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Buy More, Save More!
Quantity Price Each
20–39 $7.07
40–79 $6.39
80+ $5.64
Discounts applied in cart/checkout.

Product Data:

Series:
  • 282 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Hose Barb
  • 5/16in Male SAE 45 Flare
Features:
  • No hose clamps or ferrules are needed for installation.
Material:
  • Brass
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
SAE Thread Size to UNF Thread Size Interchange
SAE Thread Number SAE Tube O.D. UNF Thread Size SAE Thread Number SAE Tube O.D. UNF Thread Size
02 1/8" 5/16"-24 07 7/16" 11/16"-24
03 3/16" 3/8"-24 08 1/2" 3/4"-16
04 1/4" 7/16"-20 10 5/8" 7/8"-14
05 5/16" 1/2" - 20 12 3/4" 1-1/16"-14
06 3/8" 5/8"-18 - - -
Brass Hose I.D. Tube O.D. Male UNF
Part Number Previous
Part Number


2820407C 282-0407 1/4" 1/4" 7/16"-20
2820407CBC** - 1/4" 1/4" 7/16"-20
2820408C 282-0408 1/4" 5/16" 1/2"-20
2820408CBC** - 1/4" 5/16" 1/2"-20
2820610C 282-0407 3/8" 3/8" 5/8"-18*
2820610CBC** - 3/8" 3/8" 5/8"-18*
2820812C 282-0812 1/2" 1/2" 3/4"-16
2821014C 282-1014 5/8" 5/8" 7/8"-14
2821217C 282-1217 3/4" 3/4" 1-1/16"-14*
2821217CBC** - 3/4" 3/4" 1-1/16"-14*

* Notch in nut for SAE identification

** 2 Brass cap on CBC parts
