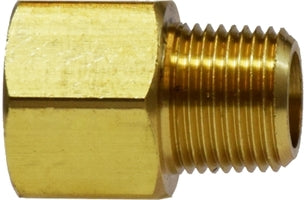

28198 by Midland | 3/8" Female NPTF x 1/8" Male NPTF | Extender Adapter | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Extender Adapter
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $5.18 |
| 40–79 | $4.68 |
| 80+ | $4.13 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | SAE# 130139 | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: | ||||||
|---|---|---|---|---|---|---|
| 120 | 375 | 222P | 3200 | R1 | 120AH | 120B |
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Thread Size Female NPTF x Male NPTF |
A | Hex | Approx. Weight (Lbs.) |
|||||||||||
| 28190L (28-190L) |
1/8" x 1/8" | 0.83" | 0.50" | 0.03 | |||||||||||
| 28190 (28-190) |
1/8" x 1/8" | 0.88" | 0.56" | 0.04 | |||||||||||
| 28191L (28-191L) |
1/4" x 1/8" | 0.94" | 0.62" | 0.04 | |||||||||||
| 28191 (28-191) |
1/4" x 1/8" | 1.06" | 0.75" | 0.07 | |||||||||||
| 28192L (28-192L) |
1/4" x 1/4" | 1.00" | 0.62" | 0.04 | |||||||||||
| 28192 (28-192) |
1/4" x 1/4" | 1.25" | 0.75" | 0.07 | |||||||||||
| 28198 (28-198) |
3/8" x 1/8" | 1.00" | 0.81" | 0.06 | |||||||||||
| 28193L (28-193L) |
3/8" x 1/4" | 1.12" | 0.81" | 0.08 | |||||||||||
| 28193 (28-193) |
3/8" x 1/4" | 1.25" | 0.87" | 0.09 | |||||||||||
| 28194L (28-194L) |
3/8" x 3/8" | 1.24" | 0.81" | 0.10 | |||||||||||
| 28194 (28-194) |
3/8" x 3/8" | 1.25" | 0.87" | 0.11 | |||||||||||
| 28197 (28-197) |
1/2" x 1/8" | 1.09" | 0.94" | 0.07 | |||||||||||
| 28199 (28-199) |
1/2" x 1/4" | 1.46" | 1.06" | 0.08 | |||||||||||
| 28195L (28-195L) |
1/2" x 3/8" | 1.19" | 0.93" | 0.09 | |||||||||||
| 28195 (28-195) |
1/2" x 3/8" | 1.47" | 1.06" | 0.18 | |||||||||||
| 28196L (28-196L) |
1/2" x 1/2" | 1.25" | 0.94" | 0.10 | |||||||||||
| 28196 (28-196) |
1/2" x 1/2" | 1.66" | 1.06" | 0.12 | |||||||||||
| 28207 (28-207) |
3/4" x 3/8" | 1.59" | 1.25" | 0.26 | |||||||||||
| 28208 (28-208) |
3/4" x 1/2" | 1.69" | 1.37" | 0.14 | |||||||||||
| 28198L (28-198L) |
3/4" x 1/2" | 1.22" | 1.25" | 0.13 | |||||||||||
| 28209 (28-209) |
3/4" x 3/4" | 1.69" | 1.37" | 0.34 | |||||||||||
