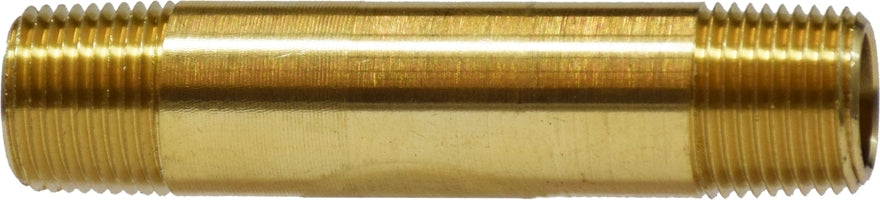

28143 by Midland | Long Nipple | 1/8" Male NPTF | 3" Length | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Long Nipple
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.66 |
| 40–79 | $3.31 |
| 80+ | $2.92 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 113 | 113B | 113A | 166 | 3327 | 3328 | 3329 | 3330 | 3331 | 215PNL |
 |
|||
|---|---|---|---|
| Part Number | Thread Size Male NPTF |
A Length |
Approx. Weight (Lbs.) |
| 28140 (28-140) |
1/8" | 1.50" | 0.03 |
| 28141 (28-141) |
1/8" | 2.00" | 0.04 |
| 28142 (28-142) |
1/8" | 2.50" | 0.06 |
| 28143 (28-143) |
1/8" | 3.00" | 0.06 |
| 28475 (28-475) |
1/8" | 3.50" | 0.07 |
| 28144 (28-144) |
1/4" | 1.50" | 0.03 |
| 28145 (28-145) |
1/4" | 2.00" | 0.05 |
| 28146 (28-146) |
1/4" | 2.50" | 0.08 |
| 28147 (28-147) |
1/4" | 3.00" | 0.10 |
| 28481 (28-481) |
1/4" | 3.50" | 0.12 |
| 28148 (28-148) |
3/8" | 1.50" | 0.06 |
| 28149 (28-149) |
3/8" | 2.00" | 0.10 |
| 28150 (28-150) |
3/8" | 2.50" | 0.10 |
| 28151 (28-151) |
3/8" | 3.00" | 0.13 |
| 28487 (28-487) |
3/8" | 3.50" | 0.17 |
| 28152 (28-152) |
1/2" | 1.50" | 0.08 |
| 28153 (28-153) |
1/2" | 2.00" | 0.12 |
| 28154 (28-154) |
1/2" | 2.50" | 0.16 |
| 28155 (28-155) |
1/2" | 3.00" | 0.20 |
| 28493 (28-493) |
1/2" | 3.50" | 0.24 |
| 28136 (28-136) |
3/4" | 1.50" | 0.12 |
| 28497 (28-497) |
3/4" | 2.00" | 0.18 |
| 28498 (28-498) |
3/4" | 2.50" | 0.23 |
| 28499 (28-499) |
3/4" | 3.00" | 0.28 |
