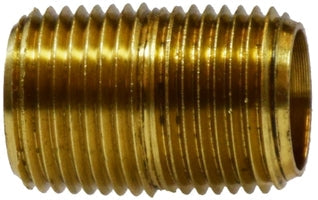

28134 by Midland | Close Nipple | 1/2" Male NPTF | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Close Nipple
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.76 |
| 40–79 | $2.50 |
| 80+ | $2.21 |
Discounts applied in cart/checkout.
28134 by Midland | Close Nipple | 1/2" Male NPTF | Brass
Sale price$2.94
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: | |||||
|---|---|---|---|---|---|
| 112 | 165 | 215PN | 3326 | 112A | 112B |
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Thread Size Male NPTF |
A | Approx. Weight (Lbs.) |
||||||||||||
| 28131 (28-131) |
1/8" | 0.75" | 0.01 | ||||||||||||
| 28132 (28-132) |
1/4" | 0.88" | 0.02 | ||||||||||||
| 28133 (28-133) |
3/8" | 1.00" | 0.05 | ||||||||||||
| 28134 (28-134) |
1/2" | 1.12" | 0.06 | ||||||||||||
| 28135 (28-135) |
3/4" | 1.31" | 0.11 | ||||||||||||
