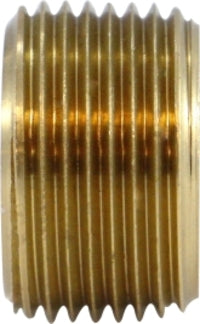

28122 by Midland | Face Bushing Plug | 3/8" Male NPTF x 1/8" Female NPTF | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Pipe Thread - Face Bushing Plug
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.79 |
| 40–79 | $2.52 |
| 80+ | $2.23 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
Specifications and Approvals:
SPECIFICATIONS
| Applications: | Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems | Used With: | Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe |
|---|---|---|---|
| SAE Rating: | N/A | Conformance: | Meets specifications and standards of ASA, ASME and SAE |
| Vibration: | Fair Resistance. | Temperature Range: | -65°F to +250°F (-53°C to +121°C) |
| Tolerance: | +/- .02 on all dimensions. Dimension Data can change without notice. | Lead Free: | Not Lead Free |
| Pipe Size | 1/16" | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|---|
| Thread Size | 1/16-27 | 1/8-27 | 1/4-18 | 3/8-18 | 1/2-14 | 3/4-14 | 1-11-1/2 |
| Working Pressure | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1200 PSI | 1000 PSI | 1000 PSI |
| Thread OD | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| Crossover Series: |
|---|
| 110F |
 |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Thread SizeMale NPTF x Female NPTF | A | Approx. Weight (Lbs.) |
||||||||||||
| 28121 (28-121) |
1/4" x 1/8" | 0.45" | 0.01 | ||||||||||||
| 28122 (28-122) |
3/8" x 1/8" | 0.50" | 0.03 | ||||||||||||
| 28116 (28-116) |
3/8" x 1/4" | 0.50" | 0.02 | ||||||||||||
| 28090 (28-090) |
1/2" x 1/8" | 0.56" | 0.06 | ||||||||||||
| 28128 (28-128) |
1/2" x 1/4" | 0.56" | 0.05 | ||||||||||||
| 28117 (28-117) |
1/2" x 3/8" | 0.56" | 0.03 | ||||||||||||
| 28129 (28-129) |
3/4" x 1/4" | 0.62" | 0.11 | ||||||||||||
| 28130 (28-130) |
3/4" x 3/8" | 0.62" | 0.08 | ||||||||||||
| 28118 (28-118) |
3/4" x 1/2" | 0.64" | 0.03 | ||||||||||||
| 28120 | 1" x 1/2" | 0.75" | 0.11 | ||||||||||||
| 28119 (28-119) |
1" x 3/4" | 0.77" | 0.10 | ||||||||||||
