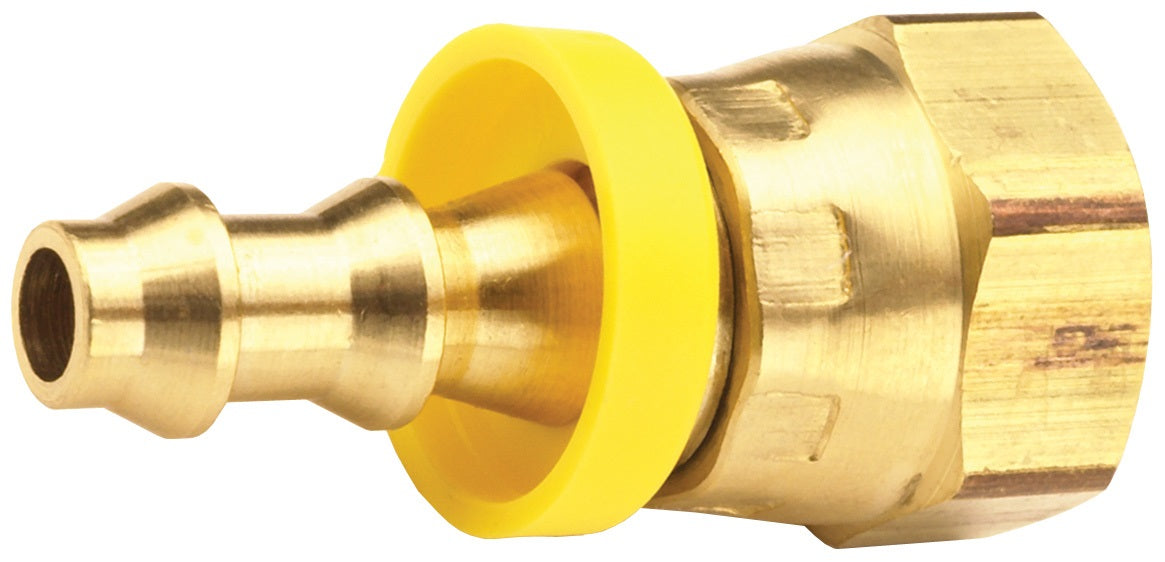

2800402C by Dixon Valve | Push-On Hose Barb Fitting with Gasket Seat | 1/8" Female NPSM Swivel x 1/4" Hose ID | Brass

2800402C by Dixon Valve | Push-On Hose Barb Fitting with Gasket Seat | 1/8" Female NPSM Swivel x 1/4" Hose ID | Brass

Sale price$12.58

Dixon Valve
Push-on Hose Barb Fitting | Female NPSM Swivel x Hose Barb Gasket Seat | Brass

Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.

No hose clamps or ferrules are needed.
Buy More, Save More!
Quantity Price Each
10–39 $11.83
40–79 $10.69
80+ $9.44
Discounts applied in cart/checkout.

Product Data:

Series:
  • 280 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-On Hose Barb
  • 1/8in Female NPSM
Construction:
  • Gasket seat type.
Material:
  • Fitting: Brass
  • Cap: Plastic. (Part Numbers Ending in CBC are Brass Caps)
  • Washer: 80 Duro Neoprene
Specifications:
  • Temperature Range: -40°F to 150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
  • Swivel is for assembly convenience only, not for live swivel applications.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass
Part Number		 Previous
Part Number		 Hose I.D. Female NPSM
2800402C 280-0402 1/4" 1/8"
2800404C 280-0404 1/4" 1/4"
2800604C 280-0604 3/8" 1/4"
2800604CBC* - 3/8" 1/4"
2800606C 280-0606 3/8" 3/8"
2800608C 280-0608 3/8" 1/2"
2800808C 280-0808 1/2" 1/2"
2801008C 280-1008 5/8" 1/2"
2801212C 280-1212 3/4" 3/4"

* Brass cap on CBC parts.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
