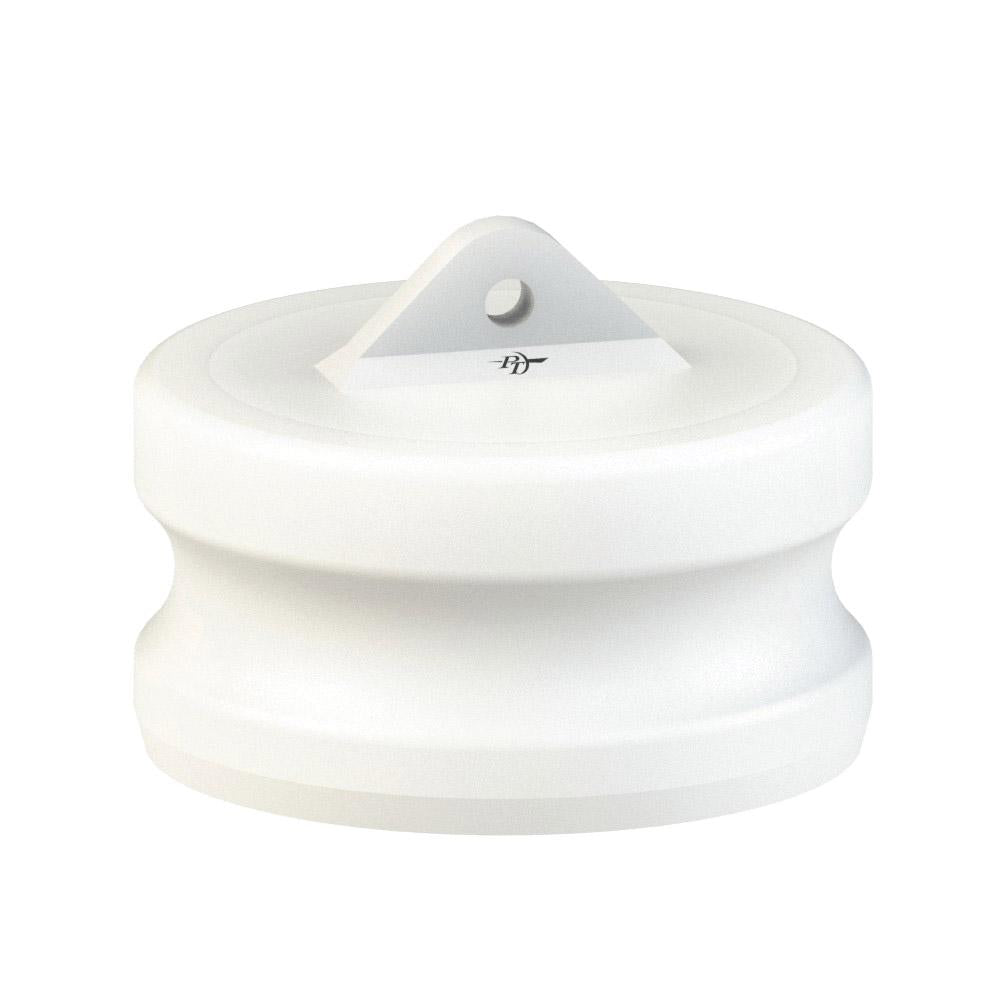

2771240 (40W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 4" Adapter | Food Grade Polypropylene

2771240 (40W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 4" Adapter | Food Grade Polypropylene

Sale price$19.83

PT Coupling
Cam and Groove (Camlock) Dust Plug | Type W | Food Grade Polypropylene

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $18.64
40–79 $16.86
80+ $14.87
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DP

Ends Configuration:
  • 4in Male Cam & Groove
Material(s):
  • Food Grade Polypropylene
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Fair abrasion resistance.
  • Color: White
  • Use with water and other food grade applications.
  • Couplings not interchangeable in the industry are sizes 8" through 12"
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
10W 2771210 1" 1.35" 0.96" 1.19" 100 PSI
15W 2771215 1-1/2" 2.06" 0.50" 1.48" 100 PSI
20W 2771220 2" 1.90" 0.70" 1.75" 100 PSI
30W 2771230 3" 2.03" 1.00" 1.84" 50 PSI
40W 2771240 4" 2.10" 1.00" 1.87" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
