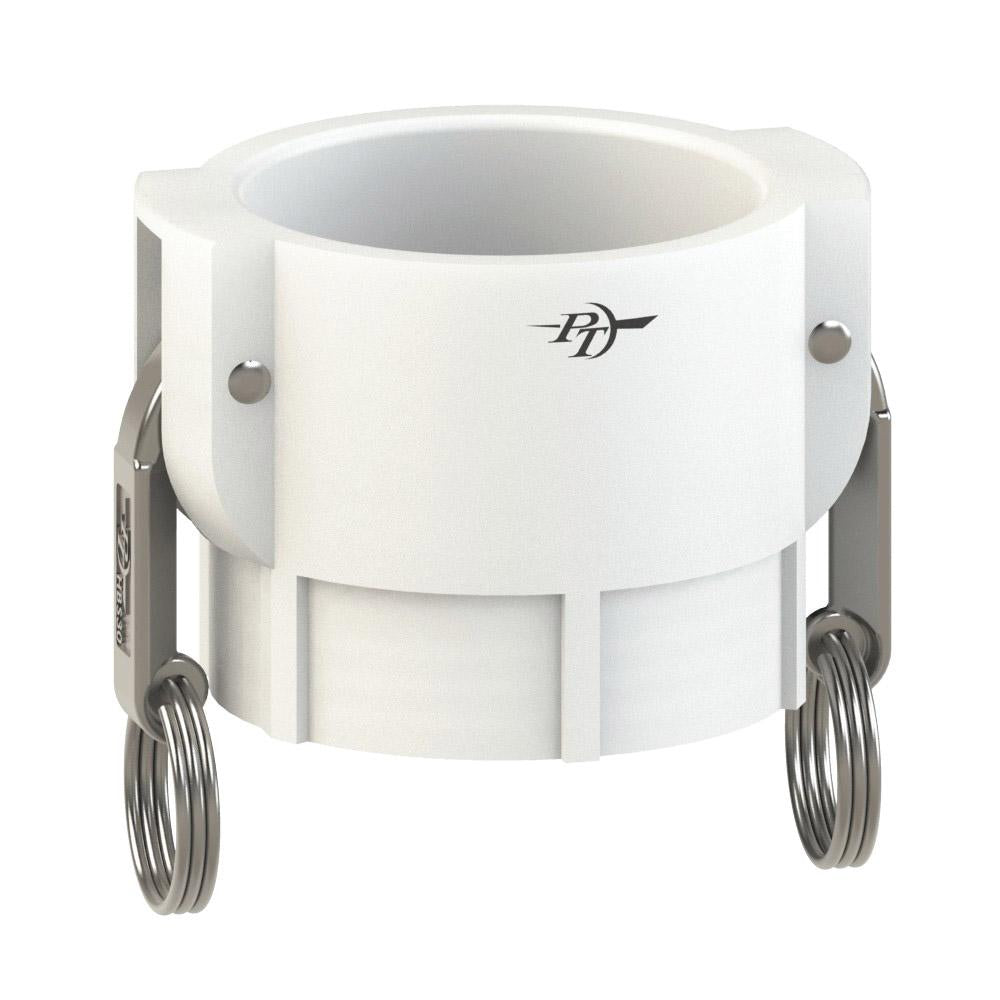

2770420 (20D) by PT-Coupling | Cam & Groove Adapter | Type D | 2" Coupler x 2" Female NPT | Food Grade Polypropylene | Buna-N Seal

2770420 (20D) by PT-Coupling | Cam & Groove Adapter | Type D | 2" Coupler x 2" Female NPT | Food Grade Polypropylene | Buna-N Seal

Sale price$21.36

PT Coupling
Cam and Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Food Grade Polypropylene | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $20.08
40–79 $18.16
80+ $16.02
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type D

Ends Configuration:
  • 2in Female Cam & Groove
  • 2in Female NPT
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Fair abrasion resistance
  • Color: White.
  • Use with water and other food grade applications.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Thread
(Female NPT)		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
07D 2770407 3/4" 3/4" 4.51" 2.11" 2.10" 0.88" 0.97" 100 PSI
10D 2770410 1" 1" 5.10" 2.44" 2.50" 0.97" 1.19" 100 PSI
12D 2770412 1-1/4" 1-1/4" 6.86" 3.26" 2.70" 1.25" 1.44" 100 PSI
15D 2770415 1-1/2" 1-1/2" 7.16" 3.56" 2.80" 1.50" 1.48" 100 PSI
20D 2770420 2" 2" 7.54" 3.94" 3.10" 1.88" 1.75" 100 PSI
30D 2770430 3" 3" 9.56" 5.46" 3.50" 2.88" 1.84" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
